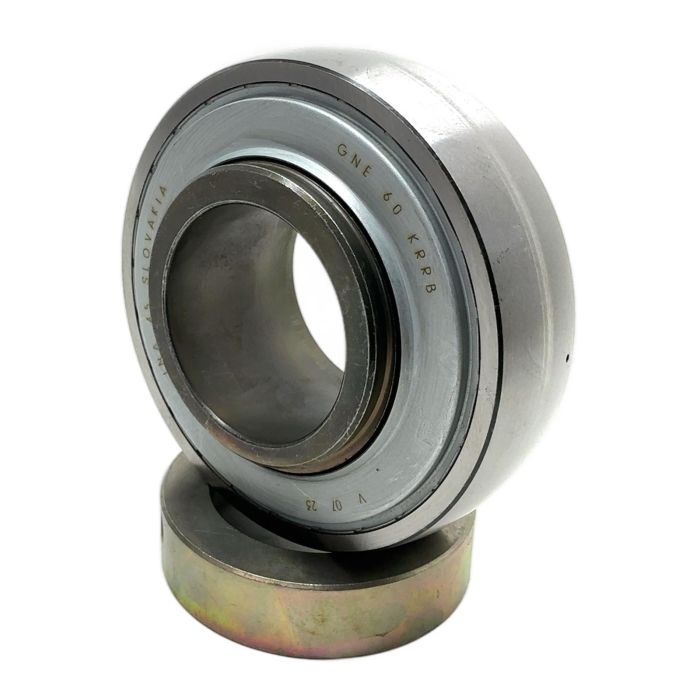

INA GNE 60 KRR B Radial Insert Ball Bearing

Description

The INA GNE 60 KRR B is a high-performance radial insert ball bearing designed for reliability and longevity in various industrial applications. It features a spherical outer ring that allows it to compensate for static shaft misalignment. The bearing is easily mounted onto a shaft using two grub screws in the extended inner ring. This unit is equipped with highly effective double-lip seals on both sides to protect against contamination and retain lubricant, ensuring optimal performance even in harsh environments.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Part Number: GNE 60 KRR B
• Bore Diameter (d): 60 mm
• Outer Diameter (D): 110 mm
• Total Width (B): 65.1 mm
• Sealing: Double-lip seals (KRR designation)
• Outer Ring Profile: Spherical
• Locking Method: Grub screws (set screws)

Label Info

• Brand: INA
• Type: GNE 60 KRR B
• Origin: SLOVAKIA

Application

This type of bearing is commonly used in agricultural machinery, conveyor systems, construction equipment, and food and beverage processing machinery. Its ability to accommodate misalignment makes it ideal for applications where housing alignment cannot be precisely controlled.

Country of Origin

This product is manufactured in Slovakia.

CO2 Impact

Reusing this industrial part prevents the emission of approximately 3.16 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 sequestered by a tree in several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of the spherical outer ring?

The spherical outer ring allows the bearing to tolerate static initial misalignment of the shaft relative to the housing, which simplifies assembly and can prevent premature bearing failure caused by excessive loads from misalignment.

The 'KRR' designation in INA bearings refers to the robust double-lip (RSR) seals fitted on both sides. These seals provide excellent protection against solid contaminants and moisture while effectively retaining the grease lubricant within the bearing.

To ensure a secure and centered lock on the shaft, you should tighten the two grub screws alternately to the manufacturer's recommended torque value. This prevents cocking of the inner ring and ensures uniform clamping force.
