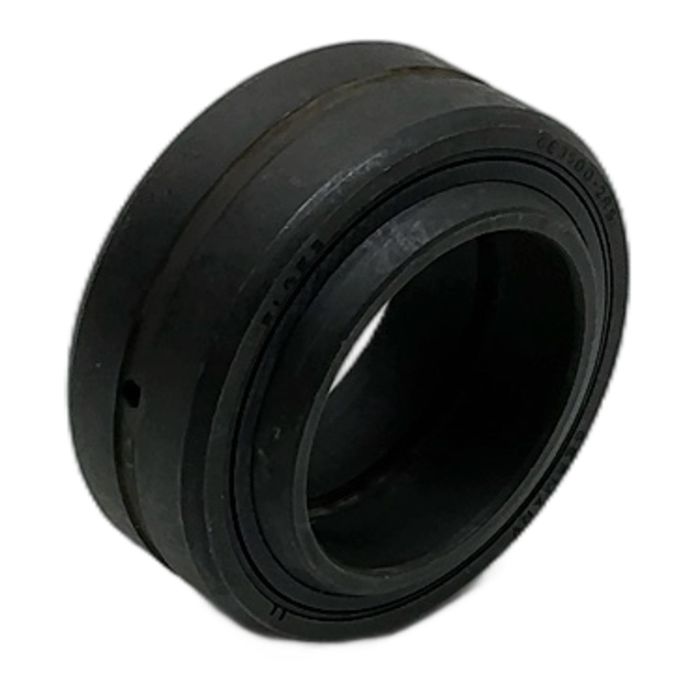

INA GE 35 DO 2RS Spherical Plain Bearing

Description

The INA GE 35 DO 2RS is a maintenance-required radial spherical plain bearing designed for high load-carrying capacity. It is suitable for applications involving slow, oscillating movements, heavy static loads, and accommodating misalignment. The steel/steel sliding contact surface requires regular lubrication, and the integrated 2RS seals on both sides provide effective protection against contaminants while retaining lubricant, extending service life.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Type: GE 35 DO 2RS
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 55 mm
• Width (B): 25 mm
• Sliding Contact Surface: Steel/Steel
• Sealing: NBR contact seals on both sides (2RS)
• Design: Maintenance-required

Label Info

• INA - ROULEMENTS S.A.
• GE 35 DO 2RS
• Engraved on Bearing: SAAR GE35 GERMANY

Application

This bearing is commonly used in hydraulic cylinder rod ends, construction and agricultural machinery linkages, lifting equipment, and other heavy industrial applications where robust, reliable pivoting joints are required.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this reused component, you avoid the production of a new one, saving approximately 0.42 kg of CO2. This is comparable to the emissions from driving a standard car for over 2 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of lubrication is required for the GE 35 DO 2RS?

This is a maintenance-required steel-on-steel bearing. It needs regular relubrication with a high-quality lithium-based grease containing EP (Extreme Pressure) additives. The frequency depends on the load, speed, and operating environment.

The 'DO' designation indicates a standard steel-on-steel construction. The '2RS' suffix signifies that the bearing is equipped with contact seals made of NBR (Nitrile Butadiene Rubber) on both sides, providing excellent protection against contamination and retaining grease.

Yes, the primary function of a spherical plain bearing is to accommodate angular misalignment between the shaft and housing. The GE 35 DO 2RS can handle significant static and dynamic misalignment, making it ideal for applications with pivoting or tilting movements.
