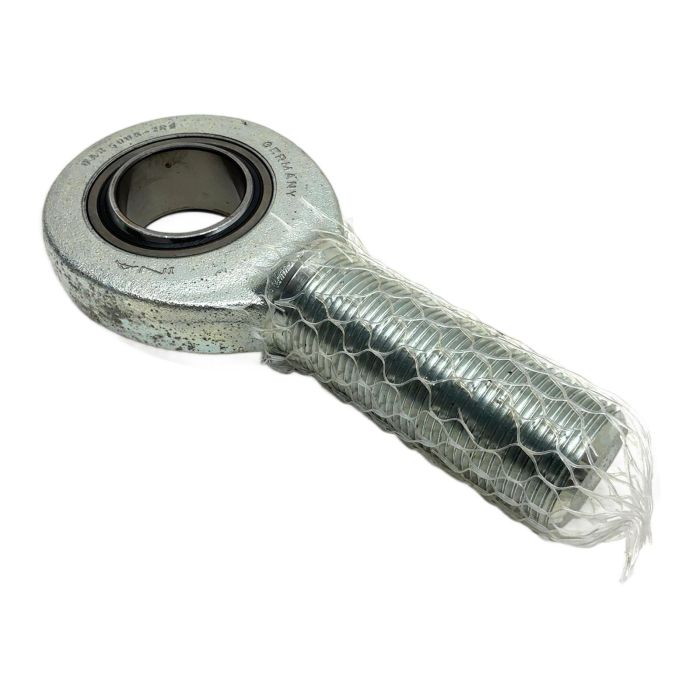

INA Rod End Bearing GAR50-UK-2RS-A

Description

This is a maintenance-free rod end bearing, model GAR50-UK-2RS-A, manufactured by INA, a brand of the Schaeffler Group. It is designed for mechanical linkages requiring the transmission of motion with angular misalignment. The maintenance-free design incorporates a special sliding layer, and the 2RS seals provide excellent protection against contaminants while retaining grease, ensuring a long service life in demanding industrial environments.

Specifications

• Manufacturer: INA (Schaeffler Group)
• Part Number: GAR50-UK-2RS-A
• Product Type: Rod End Bearing (Male Thread)
• Bore Diameter: 50 mm
• Connection Thread: M36x2 (Right-Hand)
• Sealing: 2RS - Contact seals on both sides
• Maintenance: Maintenance-free version
• Dynamic Load Rating (C): 112 kN

Label Info

• Brand: INA
• Model: GAR50-UK-2RS-A
• Made in: Germany

Application

Ideal for use in various industrial applications, including hydraulic and pneumatic cylinder linkages, packaging machinery, agricultural equipment, and general mechanical engineering where robust and reliable oscillating joints are necessary.

Country of Origin

This product is proudly manufactured in Germany.

CO2 Impact

Choosing this component saves an estimated 3.6 kg of CO2 compared to manufacturing a new one. This environmental saving is equivalent to the emissions from driving a car for 18 kilometers.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What do "UK" and "2RS" signify in the model number?

The "UK" designation refers to a maintenance-free design featuring a special low-friction sliding layer between the inner and outer rings. "2RS" indicates that the bearing is fitted with contact seals made of nitrile butadiene rubber (NBR) on both sides for superior protection against dust and moisture.

This model, GAR50-UK-2RS-A, features a standard right-hand male thread. Left-hand thread versions are typically designated with an "L" in the prefix, for example, GAL.

The basic dynamic load rating (C) for the INA GAR50-UK-2RS-A is 112 kN. This value is used to calculate the bearing's fatigue life under dynamic load conditions.
