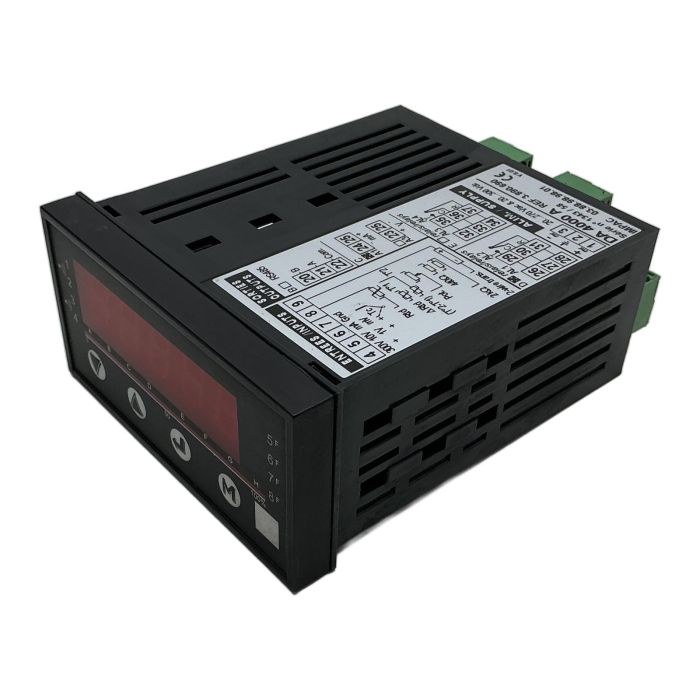

IMPAC DA 4000 A Universal Digital Process Indicator

Description

The IMPAC DA 4000 A is a high-performance, panel-mount universal digital indicator, engineered for precision and versatility in industrial process monitoring. Its wide-range power supply and universal input capabilities allow it to interface with a vast array of sensors, including thermocouples, RTDs, and transmitters with voltage or current outputs. Equipped with configurable relay outputs and RS485 communication, this device is ideal for integration into control systems for alarming and data logging. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Model: DA 4000 A
• Reference Number: 3.890.690
• Power Supply: 20 to 270 V AC & 20 to 300 V DC
• Inputs: Universal (mV, V, mA, Thermocouple, RTD, Potentiometer)
• Outputs: 4x Relays, RS485, Analog (mA/V options)
• Display: 5-digit LED, red
• Mounting Type: Panel Mount
• Version: V 8.01

Label Info

• Manufacturer: IMPAC
• Serie n: 1343 / 58
• Made in France

Application

This indicator is perfectly suited for applications in manufacturing, process control, and laboratory settings where accurate display and control of temperature, pressure, flow, or other process variables are critical.

Country of Origin

This product is manufactured in France.

CO2 Impact

By purchasing this pre-owned IMPAC indicator, you are actively contributing to a circular economy and reducing industrial waste. This choice prevents the emission of approximately 12.0 kg of CO2, which would have been generated during the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The DA 4000 A is a universal indicator typically supporting common thermocouple types such as K, J, T, E, N, R, S, and B. Always refer to the specific device configuration or manual to confirm compatibility.

Configuration of the RS485 interface, including baud rate, parity, and device address, is done through the front panel programming menu. It allows the indicator to be integrated into a larger SCADA or PLC system using a protocol like Modbus RTU.

Yes, the four relay outputs are fully programmable. They can be set up as high alarms, low alarms, window alarms (within a specific range), or for deviation alarms based on a setpoint, providing flexible control options.
