IMO M12 Angled Sensor Cable

Description

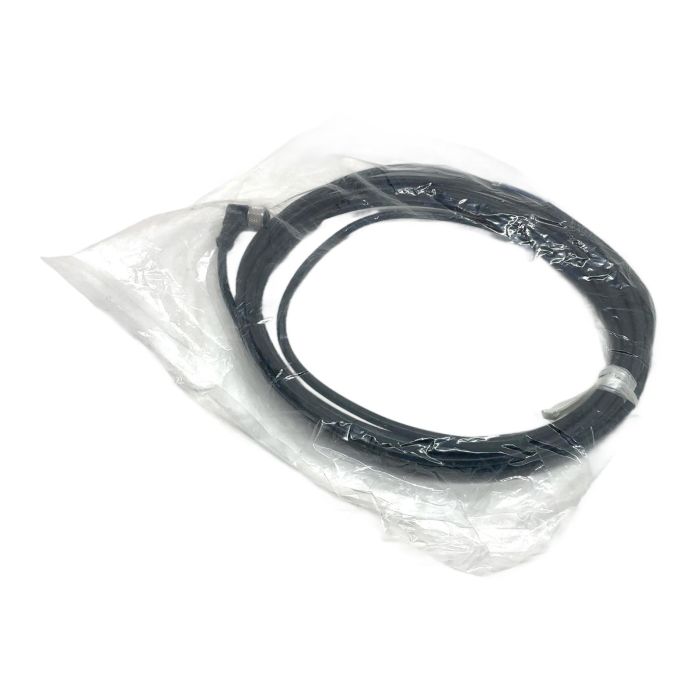

The M12F0140205000 from IMO is a high-quality industrial sensor and actuator cable designed for reliable performance in automation applications. This cable assembly features a rugged, 90-degree angled female M12 connector on one end and flying leads on the other, providing flexible installation options. The 5-meter PUR (Polyurethane) jacket offers superior resistance to oils, abrasion, and chemicals compared to standard PVC, ensuring longevity in harsh environments. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: IMO Precision Controls
• Part Number: M12F0140205000
• Connector 1: M12, Female, Angled (90 deg)
• Number of Poles: 4-Pin
• Coding: A-Coded
• Connector 2: Flying Leads (Open End)
• Cable Length: 5 meters
• Jacket Material: PUR (Polyurethane)
• IP Rating: IP67 (when connected)

Application

This cable is ideal for connecting sensors, actuators, and other components in factory automation, robotics, conveyor systems, and machine building where a secure and environmentally resistant connection is required.

CO2 Impact

By purchasing this component, you are contributing to a circular economy. Reusing this 0.25 kg cable assembly avoids approximately 10.0 kg of CO2 emissions, which is equivalent to the savings from not driving a car for 50 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

A PUR (Polyurethane) jacket offers significantly better resistance to abrasion, oils, and chemicals. It is also more flexible and durable in applications with movement, such as on robotic arms or cable chains, making it a superior choice for demanding industrial environments.

A-Coding refers to the specific keyway and pin arrangement inside the M12 connector. It is the most common coding standard and is primarily used for sensors, actuators, and DC power applications, preventing incorrect mating with other coded connectors like B, D, or X-coded types.

No, standard PUR cables are not recommended for welding applications. The jacket is not resistant to weld spatter or the high temperatures found in these environments. For such applications, a specialized cable with a weld-spatter-resistant jacket is required.
