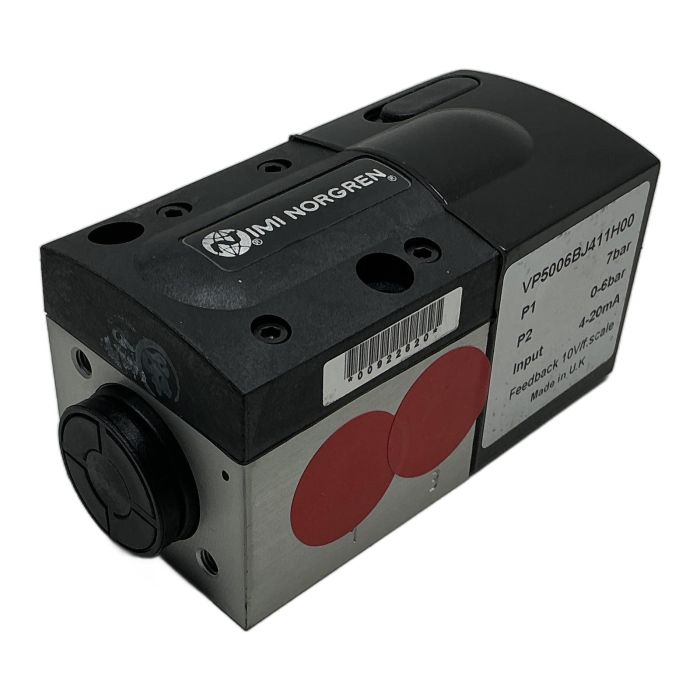

IMI Norgren VP50 Proportional Pressure Control Valve

Description

The VP5006BJ411H00 is an electro-pneumatic proportional pressure control valve from IMI Norgren's trusted VP50 series. It accurately converts a 4-20mA electrical input signal into a highly stable and repeatable pneumatic output pressure between 0 and 6 bar. This unit is ideal for applications requiring precise and dynamic pressure control. It features a G1/4 port size, an M12 4-pin connector, and provides a 0-10V feedback signal for process monitoring. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: IMI Norgren
• Series: VP50
• Type: Proportional Pressure Control Valve
• Output Pressure Range: 0 to 6 bar
• Maximum Supply Pressure (P1): 7 bar
• Input Signal: 4-20mA
• Feedback Signal: 0-10V Full Scale
• Port Connection: G1/4
• Electrical Connection: 4-pin M12
• Operating Medium: Compressed air, filtered to 5um, non-lubricated

Label Info

• Model: VP5006BJ411H00
• P1: 7bar
• P2: 0-6bar
• Input: 4-20mA
• Feedback: 10V/f.scale

Application

This valve is suitable for a wide range of industrial applications, including tension control, robotics, material handling, and process control systems where precise regulation of air pressure is critical.

Country of Origin

Made in the U.K.

CO2 Impact

By purchasing this remanufactured component, you are actively contributing to the circular economy and have helped avoid approximately 32 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

The supply air must be filtered to 5 micrometers (5um) and should be non-lubricated (oil-free). This ensures the longevity and accuracy of the internal valve components.

The valve has potentiometers for Gain, Span, and Zero adjustments under a protective cover. The label indicates it is factory-calibrated for a 0.1L load volume. For different load volumes, you may need to adjust the Gain potentiometer to optimize response time and prevent oscillation.

The valve is controlled by a 4-20mA analog current signal from your PLC or controller. It provides a 0-10V analog voltage feedback signal, which is proportional to the actual output pressure. This feedback allows for closed-loop control and system monitoring to verify that the correct pressure is being delivered.
