IMI Norgren Pneumatic Cylinder SPC/040168/100

Description

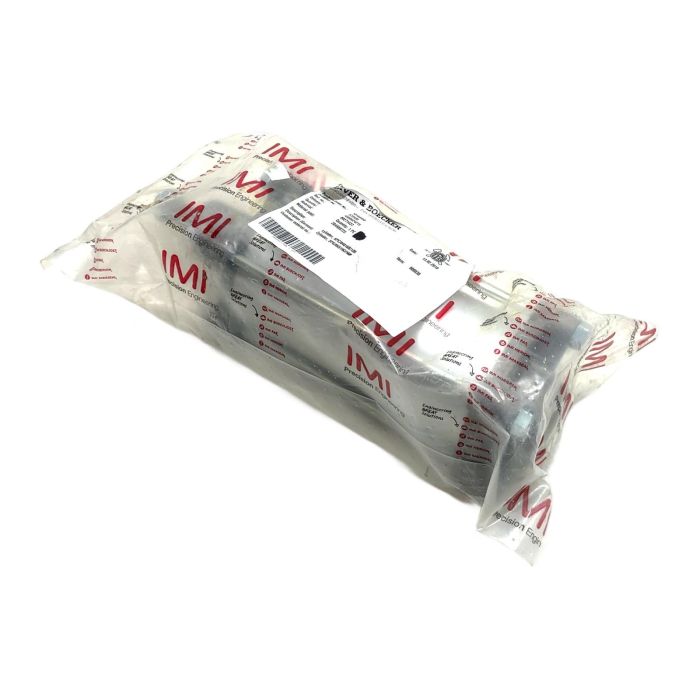

This is a new-old-stock pneumatic cylinder from IMI Norgren, part number SPC/040168/100. The item is in its original, sealed manufacturer packaging. This profile cylinder is built to high standards, likely conforming to ISO 15552, making it suitable for a wide range of demanding industrial applications requiring reliable linear motion and force.

Specifications

• Manufacturer: IMI Norgren
• Part Number: SPC/040168/100
• Product Type: Pneumatic Profile Cylinder
• Action: Double-Acting (Assumed)
• Bore Size (inferred): 40 mm
• Stroke Length (inferred): 100 mm
• Condition: New old stock, in original sealed packaging

Label Info

• Customer: Haver & Boecker
• Material No.: 204888725
• Date: 13.02.2018
• Description: cylinder, SPC/040168/100

Application

Ideal for use in factory automation, material handling, packaging machinery, clamping systems, and other applications where pneumatic linear actuation is required.

Country of Origin

Germany

CO2 Impact

Opting for this component over a new one prevents the emission of approximately 10.4 kg of CO2, which is comparable to the emissions from driving a standard passenger car for 52 kilometers.

Availability

This item is in stock and ready for immediate dispatch. It is a new product in its original sealed packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the significance of the two different part numbers (SPC/040168/100 and SPG/06519C/160) on the label?

Answer

The label is from the end-user, Haver & Boecker, not IMI Norgren directly. These are likely internal part numbers. The first number, SPC/040168/100, is listed as the primary description and likely refers to a cylinder with a 40mm bore and 100mm stroke, which is a standard configuration. The second number may be an older or alternative internal reference.

Question? Is this cylinder a direct replacement for a standard ISO 15552 cylinder?

Answer

Visually, it conforms to the ISO 15552 standard for profile barrel cylinders. This means its mounting dimensions (tie-rod spacing, front and rear cap dimensions) should be interchangeable with other ISO 15552 cylinders of the same bore size (likely 40mm). However, always verify critical dimensions before installation.

Question? Does this cylinder have a magnetic piston for sensor detection?

Answer

While not explicitly stated on the label, it is a standard feature for most modern IMI Norgren profile cylinders like the ISOLine series. The design incorporates T-slots on the profile for mounting sensors, strongly suggesting it is equipped with a magnetic piston for position sensing.
