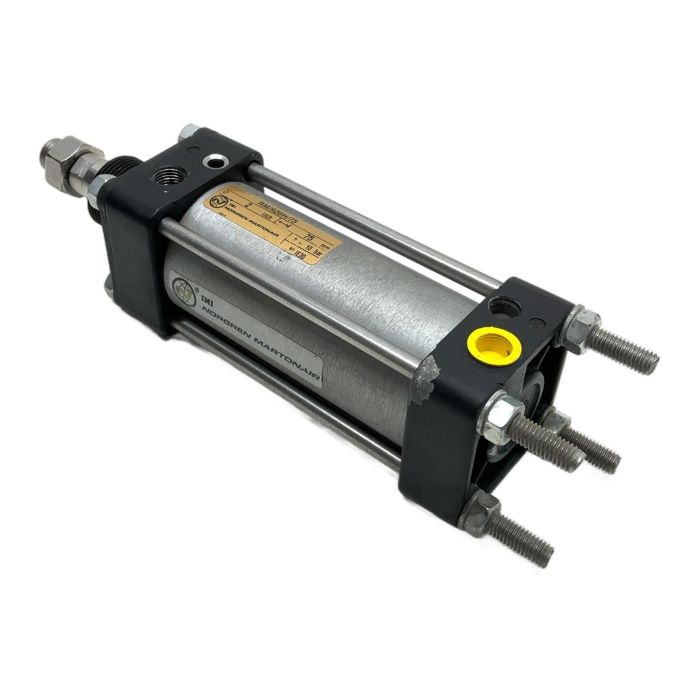

IMI Norgren RM/920H/75 Pneumatic Cylinder

Description

This is a double-acting pneumatic cylinder, model RM/920H/75, from the highly regarded IMI Norgren Martonair series. Engineered for reliability and long service life, this cylinder is ideal for a wide range of industrial automation and linear motion applications. Its tie-rod construction ensures robust performance even under demanding conditions.

Specifications

• Manufacturer: IMI Norgren
• Part Number: RM/920H/75
• Action: Double-Acting
• Bore Diameter: 2 inch (approximately 50.8 mm)
• Stroke Length: 75 mm
• Operating Pressure Range: 2 to 10 bar
• Construction: Tie-Rod Cylinder

Label Info

• Type: RM/920H/75
• Bore: 2 inch
• Stroke: 75 mm
• Pressure: 2 - 10 bar

Application

Suitable for applications requiring precise and powerful linear movement, such as clamping, positioning, and material handling in manufacturing, packaging, and processing industries.

Country of Origin

This product is typically manufactured in the United Kingdom.

CO2 Impact

By purchasing this reused cylinder, you are contributing to a circular economy and avoiding approximately 7.0 kg of CO2 emissions associated with the production of a new unit. This saving is comparable to the emissions from driving a car for 35 kilometers.

Availability

This is an obsolete item, available from our stock. Limited quantities available. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'H' designation in older Norgren cylinder series often indicates the use of high-temperature seals, typically made from Viton (FKM). These seals allow the cylinder to operate reliably in environments with higher ambient or fluid temperatures compared to standard NBR seals.

This specific model from the RM/900 series does not inherently include a magnetic piston for use with external sensors. The standard configuration relies on mechanical or adjustable pneumatic cushioning. If position sensing is required, you would need a model with a magnetic piston and appropriate sensors.

For a 2-inch (50.8mm) bore cylinder in this series, the air ports are typically G1/4 (BSPP). The piston rod thread is likely M16x1.5. It is always recommended to verify with a thread gauge before connecting fittings to prevent damage.
