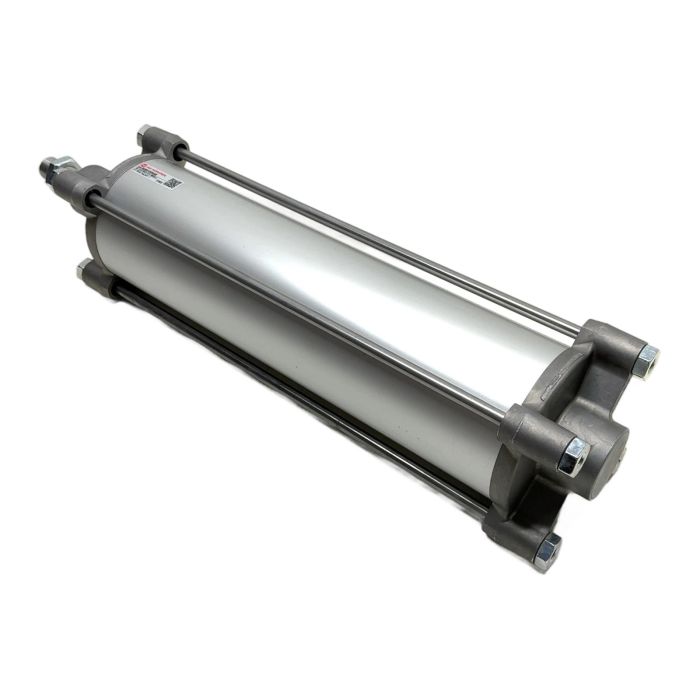

IMI Norgren RA/802125/M/400 Pneumatic Tie-Rod Cylinder

Description

This is a double-acting pneumatic cylinder from the IMI Norgren RA/8000 series, designed according to the ISO 15552 standard. Its robust tie-rod construction ensures durability and reliable performance in demanding industrial environments. Featuring a 125mm bore and a 400mm stroke, it is equipped with a magnetic piston for use with position sensors, offering precise control in automation systems.

Specifications

• Manufacturer: IMI Norgren
• Series: RA/8000
• Type: RA/802125/M/400
• Actuation: Double-acting
• Standard Compliance: ISO 15552
• Bore Diameter: 125 mm
• Stroke Length: 400 mm
• Piston: Magnetic
• Operating Pressure: 1 to 16 bar
• Maximum Operating Temperature: 80 deg. C
• Cushioning: Adjustable pneumatic cushioning

Label Info

• Type: RA/802125/M/400
• Ser. A
• Bore (O): 125mm
• Stroke: 400mm
• Pressure (p): 1-16 bar
• Max Temperature (Tmax.): 80 deg. C

Application

This cylinder is ideal for a variety of applications including material handling, packaging machinery, factory automation, and processing lines where linear motion and force are required.

Country of Origin

Manufactured in the Czech Republic.

CO2 Impact

By purchasing this reused component, you are avoiding the emission of approximately 135.0 kg of CO2. This is equivalent to the savings from driving a car for 675 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of sensors are compatible with the magnetic piston (M designation) in this RA/802125/M/400 cylinder?

The magnetic piston is compatible with IMI Norgren's M/50 series reed switches or solid-state sensors (SM/8000). These sensors can be mounted via mounting brackets on this tie-rod style cylinder to detect the piston's end-of-stroke positions.

Yes, the IMI Norgren RA/8000 series cylinders are designed for non-lube operation in standard applications. They are pre-lubricated at the factory for their entire service life. However, if lubricated air is introduced, it must be continued to prevent the original grease from being washed out.

The ISO 15552 standard ensures that the cylinder has standardized mounting dimensions, piston rod threads, and bore sizes. This makes it interchangeable with cylinders from other manufacturers that also comply with this standard, simplifying design, installation, and replacement.
