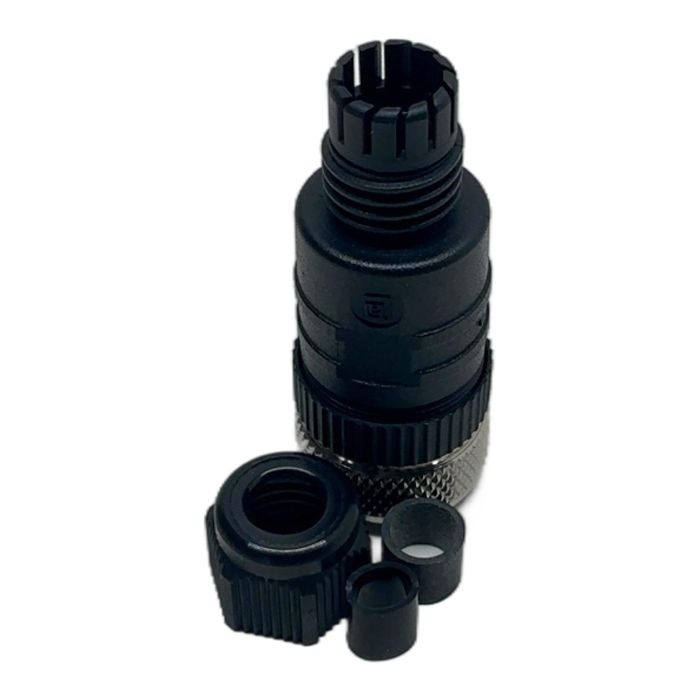

Product Details: Norgren M12 Connector 5-Pin Female PL50001

Description

This Norgren PL50001 is a high-quality, field-wireable M12 connector designed for reliability and ease of use in industrial automation. As a 5-pin, A-coded female connector, it is perfectly suited for standard sensor and actuator applications. The straight design and screw termination allow for quick and secure on-site cable assembly without the need for special tools.

Specifications

• Manufacturer: Norgren
• Part Number: PL50001
• Connector Type: M12 Circular Connector
• Number of Pins: 5
• Gender: Female
• Coding: A-coded
• Termination Method: Screw terminals
• Cable Outlet: Straight
• Compatible Cable Diameter: 4 to 6 mm
• Rated Voltage: max. 60V AC/DC
• Rated Current: max. 4 A
• Protection Rating: IP67 (when fully mated)

Label Info

• SAP-NR.: 103789

Application

Ideal for connecting sensors, actuators, and other components in factory automation, robotics, and process control systems where a durable and reliable connection is critical.

Country of Origin

Made in Hungary.

CO2 Impact

By purchasing this pre-owned component, you are contributing to the circular economy and have helped avoid approximately 0.8 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the maximum cable diameter for the Norgren PL50001 connector?

The connector is designed for cables with an outer diameter ranging from 4 to 6 mm.

A-coding refers to the specific keyway position of the connector interface. It is the most common coding for sensors, DC power, and 1 GBit Ethernet in industrial automation, preventing mismating with other coded connectors (like B, D, or X-coded).

You will need a small flat-head screwdriver for the screw terminals inside the connector and a wire stripper to prepare the cable conductors. No special crimping tools are necessary.
