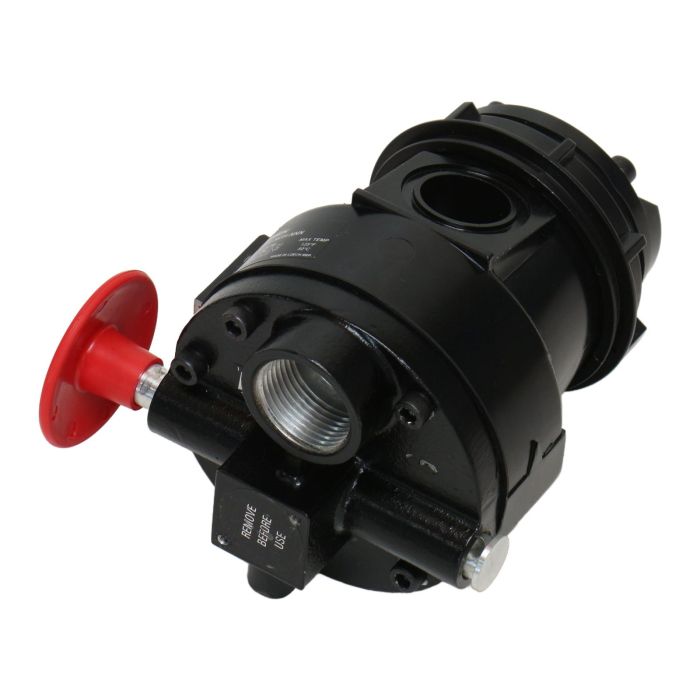

IMI Norgren P68F-NGH-NNN Soft Start Valve

Product Description

The IMI Norgren P68F-NGH-NNN is an Olympian Plus soft start dump valve designed for controlled increase of downstream pressure on start up. It features a variable snap adjustment, high forward flow capacity, and a high flow dump facility. This valve is suitable for use with compressed air.

Product Specifications

Medium: Compressed air
Operating Temperature: -20 ... 50 °C, -4 ... 149 °F
Operating Pressure: 3 ... 10 bar, 44 ... 145 psi
Port Size: Without Yoke
Actuation: Solenoid pilot / Spring return
Valve Operation: 3/2
Flow: 147 dm3/sec, 311 scfm
Materials - Body: Aluminium alloy
Materials - Elastomers: NBR
Certification - IP Rating: IP65 (with sealed plug)
Dimensions - Height: 165 mm
Dimensions - Length: 110 mm
Dimensions - Width: 108 mm
Weight: 2.05 kg
Country of Origin: Czechia
Range: P68F
Series: Olympian Plus
Brand: IMI Norgren

Product Label Info

Model Code / Product Markings: P68F-NGH-NNN

NORGREN, P68F-NGH-NNN, SOFT START VALVE, Qty 1, MADE IN CZECH REPUBLIC, a subsidiary of IMI plc

NORGREN, MAX INLET, 150 psig, 10 bar, P68F-NGH-NNN, M, MAX TEMP, 125°F, 50°C, MADE IN CZECH REP.

Application

This soft start valve is typically used for controlled pressure increase in pneumatic systems.

Country of Origin

This product is manufactured in Czechia.

Method of Application

For installation and integration guidance, refer to the official datasheet from IMI Norgren.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page IMI Norgren

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from IMI Norgren
• Explore similar products in Pneumatics

Frequently Asked Questions

What is the IMI Norgren P68F-NGH-NNN Soft Start Valve used for?

This part is typically used in pneumatic systems to control the pressure increase during start-up.

What are the key advantages of the IMI Norgren P68F-NGH-NNN Soft Start Valve?

It offers a controlled pressure increase, high flow capacity, and reliable performance in compressed air systems.

Is P68F-NGH-NNN compatible with my system?

If you're using IMI Norgren control systems, especially the Olympian Plus series, then this model will likely be compatible. Contact us to verify.

Alternatives to P68F-NGH-NNN

If you're looking for a similar part, consider exploring other products in the IMI Norgren P68F range. These valves offer similar functionality and performance.
