IMI Norgren Herion 2636265 5/3-Way Pneumatic Valve

Description

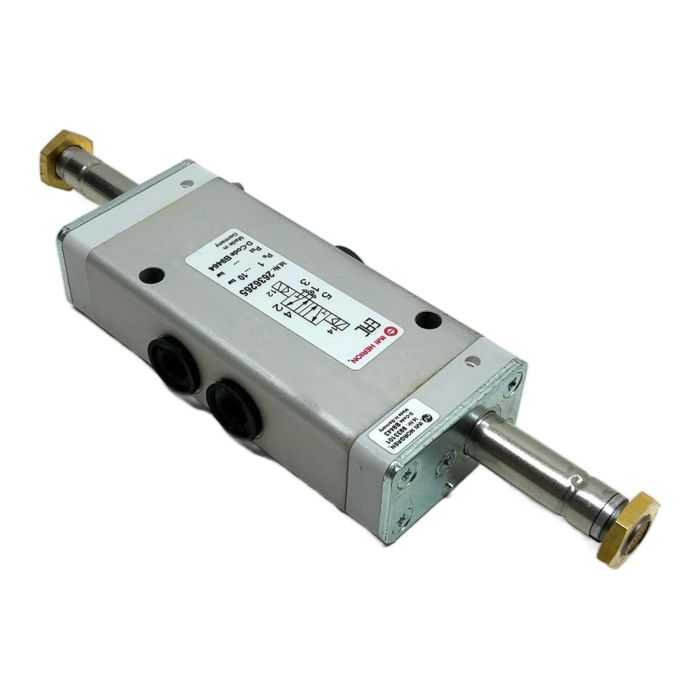

This is the IMI Norgren Herion 2636265, a robust and reliable 5/3-way pneumatic spool valve. It is designed for precise directional control in industrial pneumatic systems. With its double air pilot actuation and closed-center position, it offers secure and stable operation, allowing for the precise positioning of actuators. Its G1/4 port size and wide operating pressure range make it a versatile component for various automation tasks.

Specifications

• Manufacturer: IMI Norgren Herion
• Part Number: 2636265
• Valve Type: Spool Valve, Soft Seal
• Function: 5/3-Way, Closed Center (All ports blocked)
• Actuation Method: Double Air Pilot
• Port Connection: G1/4
• Operating Pressure (Pe): 1 to 10 bar
• Body Material: Aluminum

Label Info

• Id. Nr.: 2636265
• Pe: 1 ... 10 bar
• D-Code: B9464

Application

This valve is ideal for applications requiring precise intermediate stopping of double-acting pneumatic cylinders. Common industries include packaging, material handling, manufacturing automation, and machine building.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you are saving approximately 6.0 kg of CO2, which contributes to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the function of the 'closed center' position in this 5/3-way valve?

In the closed center (or all ports blocked) position, the valve stops all airflow. This means the supply port (1), the exhaust ports (3 and 5), and the outlet ports (2 and 4) are all sealed. This is useful for stopping a double-acting cylinder mid-stroke and holding it securely in position.

What is the required pilot pressure to actuate this valve?

The required pilot pressure depends on the main line pressure (Pe). According to the datasheet for the 26362 series, the minimum pilot pressure is typically around 1 bar, but it is always recommended to consult the official IMI Norgren documentation for the specific pressure-dependent actuation requirements to ensure reliable switching.

Can this valve be used with lubricated air?

Yes, the Herion 26362 series valves are designed to operate with both non-lubricated and lubricated compressed air. If using lubricated air, it is important to ensure continuous lubrication to prevent the seals from drying out over time.
