Description / IMI NORGREN GDM 2016 HN 0510275
IMI Norgren GDM 2016 HN Solenoid Valve Connector
Description

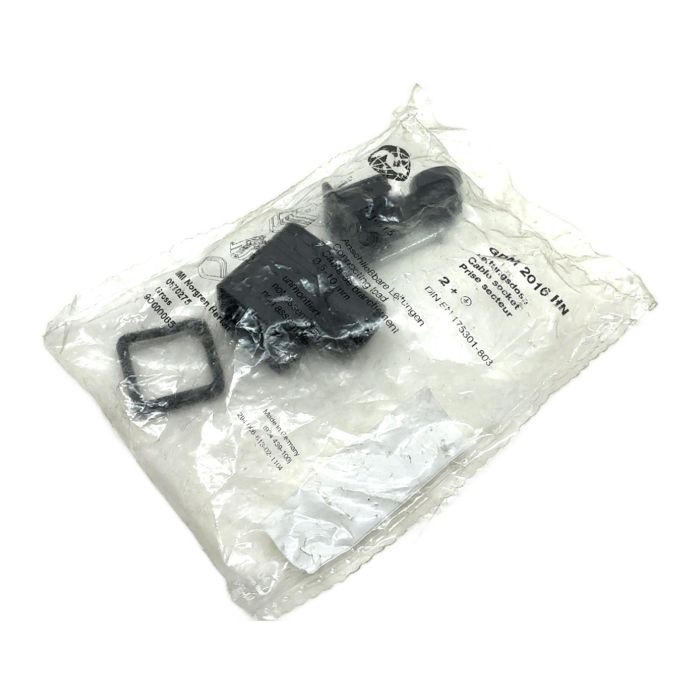

This is an original IMI Norgren Herion cable socket, model GDM 2016 HN, with part number 0510275. It is an industry-standard connector conforming to DIN EN 175301-803 Form A, widely used for connecting solenoid valves, pressure switches, and other electrical components in pneumatic and hydraulic systems. This connector is supplied as an unassembled kit, allowing for easy field wiring.
Specifications
- Manufacturer: IMI Norgren
- Type: GDM 2016 HN
- Part Number: 0510275
- Standard: DIN EN 175301-803 Form A
- Number of Poles: 2 + PE (Ground)
- Cable Gland Thread: M16 x 1.5
- Accepted Cable Diameter: 5 mm to 10 mm
- Condition: New in original packaging
Label Info
- GDM 2016 HN
- IMI Norgren Herion
- 0510275
Application
Ideal for use in industrial automation, machine building, and process control for reliably connecting power to solenoid coils on pneumatic and hydraulic valves.
Country of Origin
Made in Germany.
CO2 Impact
By choosing this new-old-stock component, you help avoid the manufacturing of a new one, saving approximately 1.0 kg of CO2. This is comparable to the emissions of driving a standard car for 5 kilometers.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question?
What is the IP rating of this GDM 2016 HN connector when properly assembled?
Answer
When correctly assembled with the supplied gasket and the cable gland tightened to the specified torque on a suitable cable, this connector typically achieves an IP65 rating, protecting it against dust ingress and low-pressure water jets from any direction.
Question?
Can this connector be used with both AC and DC solenoid coils?
Answer
Yes, this is a passive electrical connector. Its suitability for AC or DC applications is determined by the voltage and current ratings of the connected device and the cable used. Always ensure the voltage does not exceed the connector's maximum rating (typically 250V).
Question?
What tools are required for assembling this connector?
Answer
You will need a small flat-head or Phillips screwdriver for the terminal screws to connect the wires, a wire stripper, and a suitable wrench or spanner for tightening the M16 cable gland nut to ensure a secure and sealed connection.Friday, March 13, 2026
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
More Information
| Item Number | GDM 2016 HN 0510275 |
|---|---|
| Brands | IMI Norgren |
| HS Code | 85366990 |
| EAN | 0 |
| HS Description | Electrical Valve Connector |
| Manufacturer | IMI Norgren |
| Product Condition | Factory New |
| Packing Condition | Original Packing Packing |
