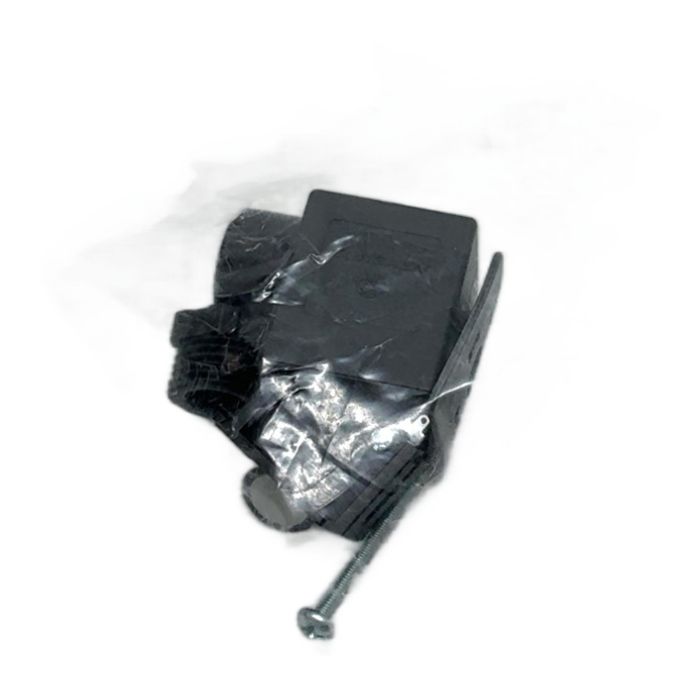

Norgren 1258133 DIN Form A Solenoid Valve Connector

Description

The Norgren 1258133 is a robust device socket designed for industrial applications, primarily for connecting solenoid valves, pressure switches, and sensors. It adheres to the DIN EN 175301-803 Form A standard, ensuring interchangeability and a secure connection. This unassembled kit allows for easy field wiring and provides excellent protection against dust and moisture when installed correctly. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Norgren
• Part Number: 1258133
• Connection Standard: DIN EN 175301-803 Form A
• Number of Poles: 2 + PE (Protective Earth)
• Cable Entry: M16 x 1.5 Cable Gland
• Compatible Cable Diameter: 5 mm to 10 mm
• Housing Material: Polyamide
• Contact Material: Brass, Tin-plated

Label Info

• Norgren 1258133
• Geraetesteckdose / Device socket
• 2 + PE
• DIN EN 175301-803

Application

Ideal for use in pneumatic systems, hydraulic machinery, factory automation, and general machine building where reliable electrical connections to actuators and sensors are critical.

Country of Origin

Germany

CO2 Impact

By purchasing this re-used component, you are avoiding the production of a new one, saving an estimated 1.2 kg of CO2. This is equivalent to the emissions of a 6 km car ride.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What is the difference between DIN Form A, B, and C connectors?

DIN Forms A, B, and C differ in pin spacing and housing size. Form A is the largest with 18mm pin spacing, Form B has 10mm or 11mm spacing, and Form C is the smallest with 8mm or 9.4mm spacing. This 1258133 model is Form A.

When correctly assembled with the proper cable diameter, this connector typically achieves an IP65 protection rating, making it dust-tight and resistant to water jets. Always verify the specifications of the connected device.

Assembly requires basic hand tools: a small flat-head screwdriver for the terminal screws and a wrench or pliers to tighten the M16 cable gland nut for a secure seal.
