IMI Herion 3/2-Way Pneumatic Solenoid Valve

Description

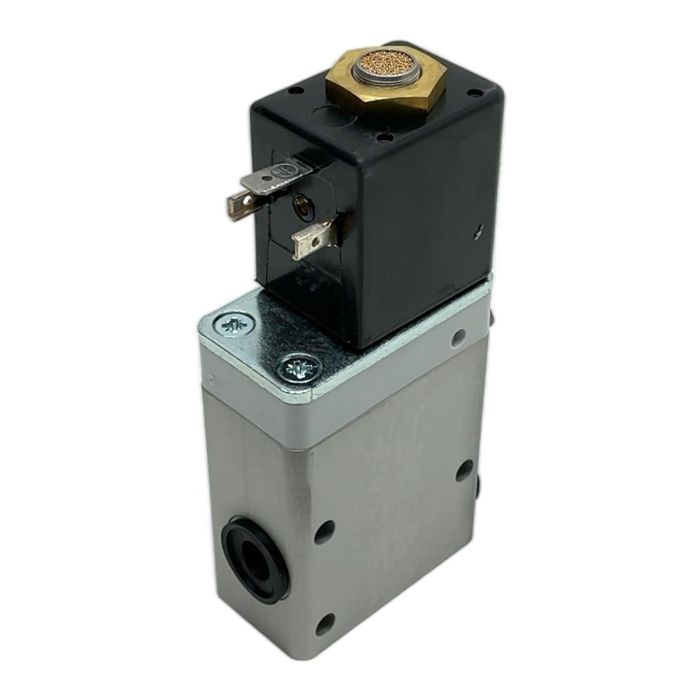

This is a high-quality, direct-acting solenoid valve from IMI Herion, model 8020750.0247.23050. Designed for precision control of compressed air, this 3/2-way, normally closed valve is a reliable component for any industrial pneumatic system. It comes complete with its 230V AC coil and is built to withstand pressures from 1 to 10 bar.

Specifications

• Manufacturer: IMI Herion (Part of IMI Norgren / IMI Precision Engineering)
• Type Number: 8020750.0247.23050
• Valve Function: 3/2-Way, Normally Closed (NC)
• Actuation: Direct Solenoid Actuated
• Operating Pressure: 1 to 10 bar
• Coil Voltage: 230V AC, 50 Hz
• Power Consumption: 9 VA
• Connection Ports: G1/4 inch

Label Info

• Valve Body Id.Nr: 8020750
• Coil P/N: 0000000024623050

Application

Ideal for use in factory automation, machine building, and process control where reliable switching of pneumatic lines is required. Common applications include actuator control, piloting larger valves, and single-acting cylinder operation.

Country of Origin

The valve body is made in Germany, and the solenoid coil is made in the Czech Republic.

CO2 Impact

By choosing this reused part, you are saving approximately 16 kg of CO2 emissions. This saving is comparable to the emissions from driving a car for 80 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It has three ports and two positions. In its normal, de-energized state, it blocks flow from the inlet port (1) to the outlet port (2), while the outlet port (2) is vented to the exhaust port (3). When energized, it allows flow from 1 to 2 and blocks the exhaust port.

This part of the Herion model number typically specifies material and connection details. For this series, it usually indicates G1/4 inch port connections and FKM (Viton) seals, suitable for a wide range of temperatures and media.

Yes, the valve body (8020750) is compatible with various IMI Herion/Norgren coils of the same series. However, you must ensure the replacement coil matches the required voltage and frequency (e.g., 24V DC, 110V AC) for your application and has the correct physical fit.
