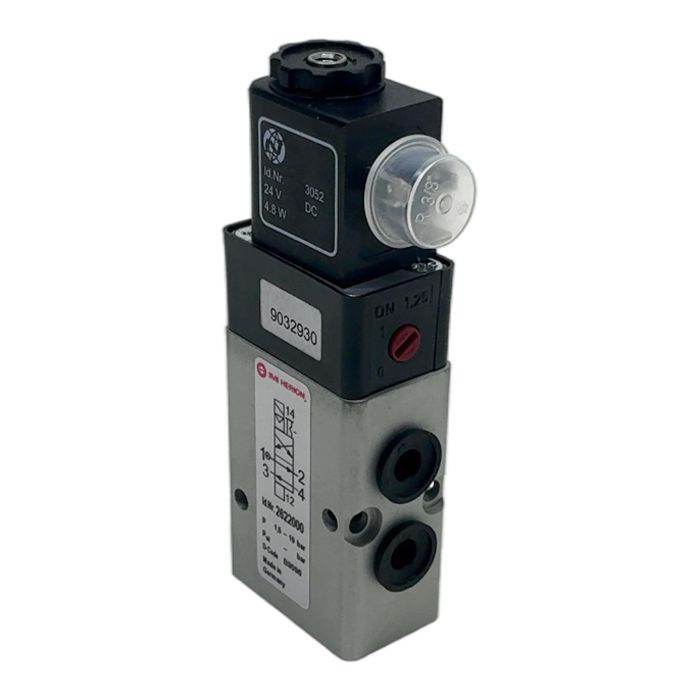

IMI Herion 2622000.3052.024.00 Pneumatic Solenoid Valve

Description

The IMI Herion 2622000 is a high-quality, direct-actuated 4/2-way solenoid valve designed for precise control in pneumatic systems. This robust valve is engineered for reliability and long service life, making it an excellent choice for a wide range of industrial applications. This is a new-old-stock item, offering the quality of an original part. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: IMI Herion
• Part Number: 2622000.3052.024.00
• Valve Function: 4/2-way, single solenoid with spring return
• Operating Voltage: 24V DC
• Power Consumption: 4.8 W
• Operating Pressure: 1.5 to 10 bar
• Port Connection: G1/4 (estimated)
• Actuation Type: Electrical

Label Info

• Valve Id.Nr: 2622000
• Coil Id.Nr: 3052
• Assembly Nr: 9032930
• D-Code: B9096

Application

This valve is ideal for applications requiring directional control of compressed air, such as actuating pneumatic cylinders, controlling pilot signals, or integration into complex automation machinery and process control systems.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the production of a new one, which saves approximately 16.0 kg of CO2. This is comparable to the emissions from driving a car for 80 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

A 4/2-way valve has four ports and two positions. It is typically used to control a double-acting pneumatic cylinder. In one position, it sends air to extend the cylinder and exhausts the other side. In the second position, it reverses the flow to retract the cylinder.

Yes, on most Herion valves of this design, the solenoid coil can be replaced independently of the valve body. This allows for cost-effective maintenance if only the electrical component fails.

For optimal performance and longevity, it is recommended to use compressed air filtered to at least 40 micrometers, free of water and oil. Using a properly maintained FRL (Filter-Regulator-Lubricator) unit upstream of the valve is best practice.
