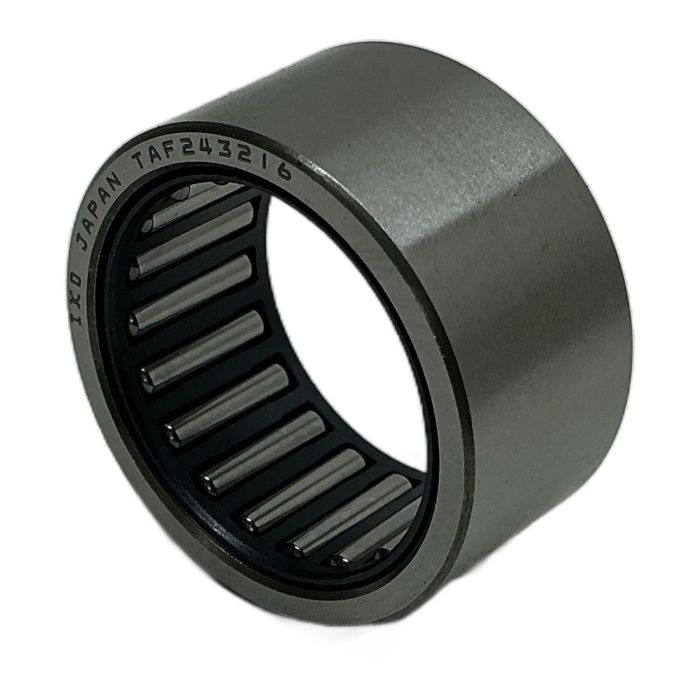

IKO TAF243216 Needle Roller Bearing

Description

The IKO TAF243216 is a high-quality needle roller bearing with a machined outer ring. Designed for applications with high radial loads and limited space, this bearing provides exceptional rigidity and accuracy. It operates without an inner ring, using a hardened and ground shaft as its inner raceway. This part is functionally equivalent to the standard NK 24/16 designation.

Specifications

• Manufacturer: IKO
• Part Number: TAF243216
• Type: Needle Roller Bearing
• Inner Diameter (Bore): 24 mm
• Outer Diameter: 32 mm
• Width: 16 mm
• Cage Material: Steel

Label Info

• Brand: IKO
• Marking: IKO JAPAN TAF243216
• Distributor Box Reference: IKO NK 24/16 NAALDLAGER

Application

This bearing is suitable for a wide range of industrial applications, including automotive systems, machine tools, gearboxes, and construction machinery where high load capacity and a compact design are essential.

Country of Origin

Made in Japan.

CO2 Impact

By choosing this reused industrial part, you are saving approximately 0.07 kg of CO2. This is equivalent to the energy needed to charge a smartphone over 8 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between IKO TAF243216 and the standard designation NK 24/16?

They are dimensionally identical (24x32x16 mm) and functionally interchangeable. TAF243216 is a specific IKO manufacturer part number, while NK 24/16 is a more generic DIN standard designation for this type of needle roller bearing without an inner ring.

No, the TAF243216 is designed to run directly on a hardened and ground shaft that serves as the inner raceway. Ensure your shaft meets the required hardness (typically around 60 HRC) and surface finish specifications for optimal bearing life.

This bearing is typically supplied with a rust-preventive oil and must be lubricated before operation. Depending on the application's speed and temperature, either grease or oil lubrication can be used. Consult the IKO engineering catalog or your machine's manual for specific recommendations.
