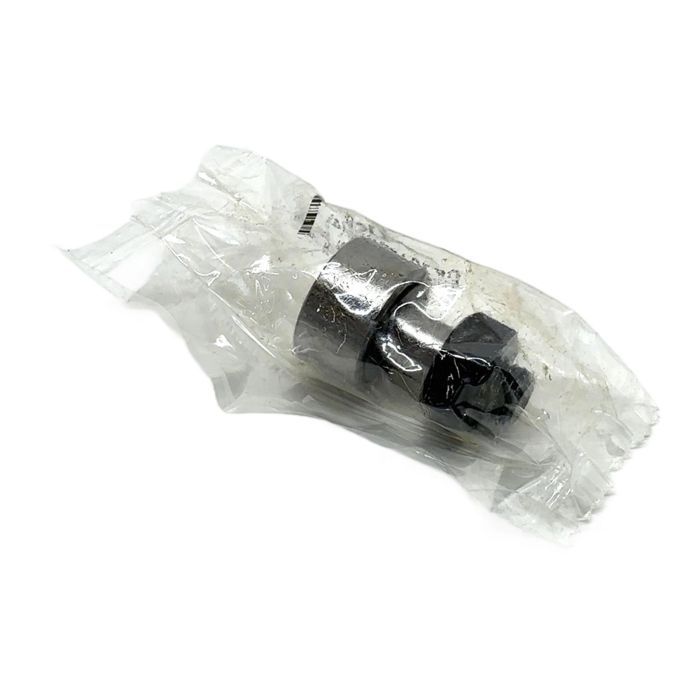

IKO KRV 22 PP Stud Type Cam Follower

Description

The IKO KRV 22 PP is a high-quality stud type cam follower designed for precision and durability in a wide range of automation and mechanical applications. This bearing features a thick outer ring and a stud incorporating needle rollers, allowing it to handle high radial loads while minimizing friction. Its robust construction ensures reliable performance in linear motion and power transmission systems.

Specifications

• Manufacturer: IKO Nippon Thompson
• Model: KRV 22 PP
• Type: Stud Type Cam Follower
• Outer Diameter: 22 mm
• Stud Diameter: 10 mm
• Overall Length: 36.5 mm
• Thread Size: M10 x 1.25
• Sealing: PP (Contact seals on both sides for dust and water resistance)
• Basic Dynamic Load Rating: 5.76 kN
• Basic Static Load Rating: 6.64 kN

Application

Ideal for use in machine tools, industrial robots, electronic component manufacturing equipment, and office automation systems where precision linear motion is required.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this component helps avoid the CO2 emissions associated with new production, contributing to a more sustainable industrial environment.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'PP' suffix indicates that the cam follower is equipped with synthetic rubber contact seals on both sides. These seals provide excellent protection against dust, debris, and moisture, which significantly extends the bearing's service life in contaminated environments.

This cam follower is pre-packed with ALVANIA GREASE S2, a high-quality lithium-based grease. For most applications, it is lubrication-free. However, for relubrication, it is recommended to use a similar lithium-based grease. The stud head is equipped with a grease fitting for easy maintenance.

Yes, the core design of a cam follower allows the outer ring to rotate freely around the stationary inner stud. The stud itself is designed to be mounted rigidly to a machine component, while the outer ring acts as a roller, following a cam or track surface.
