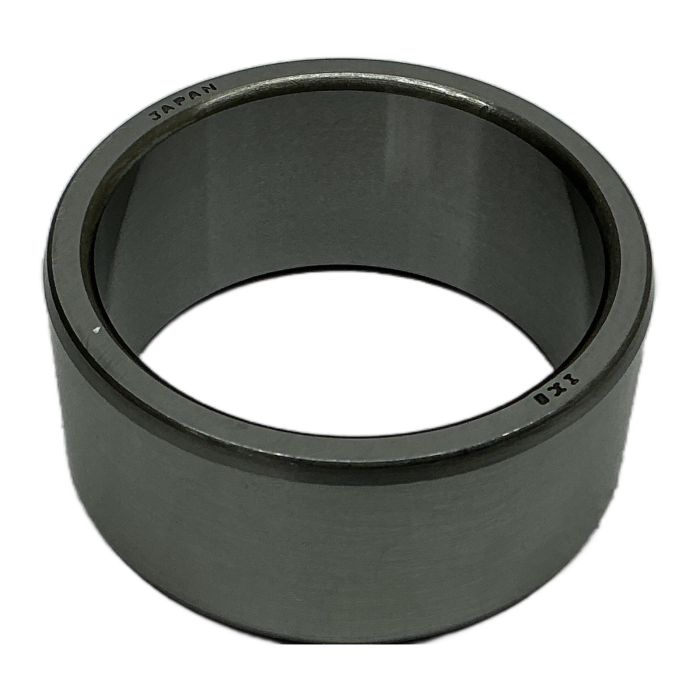

IKO IR 40X48X22 Inner Ring for Needle Roller Bearings

Description

The IKO IR 40X48X22 is a high-quality, precision-ground inner ring designed for use with needle roller bearings. It serves as an inner raceway in applications where the shaft cannot be hardened and ground. Manufactured from high-carbon chromium bearing steel, it provides a hard and accurate surface to ensure optimal bearing performance and longevity.

Specifications

• Manufacturer: IKO
• Type: Needle Roller Bearing Inner Ring
• Model: IR 40X48X22
• Inner Diameter (d): 40 mm
• Outer Diameter (F): 48 mm
• Width (B): 22 mm
• Material: High-Carbon Chromium Bearing Steel

Label Info

• Brand: IKO
• Part Number: IR 40X48X22
• Order Code: LRT404822

Application

This inner ring is commonly used in various industrial applications, including automotive transmissions, gearboxes, pumps, compressors, and two-cycle engines, where high radial loads and oscillating movements are present.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reused component over a new one prevents the emission of approximately 0.2 kg of CO2. This saving is equivalent to the energy needed to fully charge a standard smartphone 24 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the typical surface hardness of this IKO inner ring?

IKO inner rings are typically through-hardened to HRC 58 to 64, providing excellent wear resistance and durability for the raceway surface.

Yes, as long as the needle roller bearing is designed for a 40mm shaft diameter and is intended to be used with a separate inner ring, this IKO part can be used. It is manufactured to international standards, ensuring compatibility.

The inner ring should be press-fitted onto the shaft. It is crucial to apply even pressure to the end face of the ring using a proper mounting tool or sleeve. Never apply force through the outer diameter, as this can damage the precision-ground raceway.
