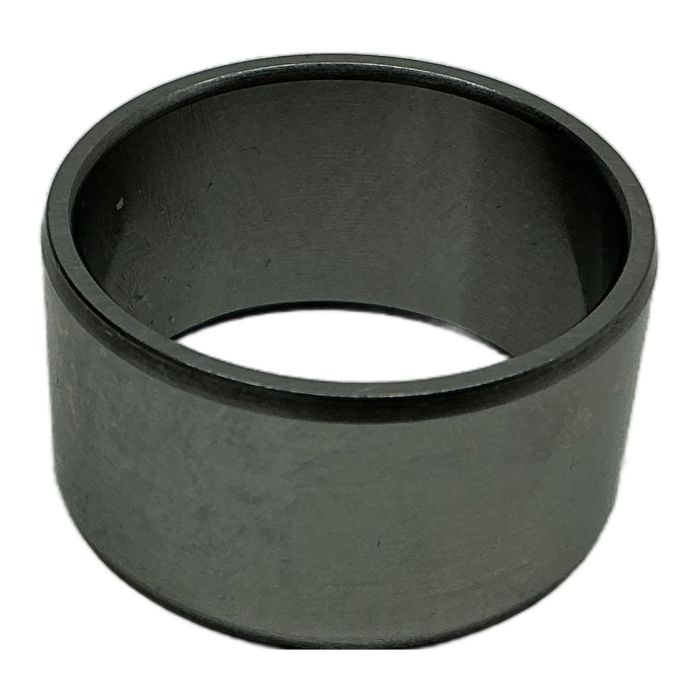

IKO IR 28X32X17 Needle Roller Bearing Inner Ring

Description

The IKO IR 28X32X17 is a high-precision inner ring designed for use with needle roller bearings. It serves as a hardened and ground inner raceway in applications where the shaft itself cannot be suitably hardened. This component is essential for achieving maximum bearing performance, load capacity, and operational life.

Specifications

• Manufacturer: IKO
• Part Number: IR 28X32X17
• Type: Inner Ring for Needle Roller Bearing
• Inner Diameter (d): 28 mm
• Outer Diameter (D): 32 mm
• Width (B): 17 mm
• Material: High Carbon Chrome Bearing Steel

Label Info

• Brand: IKO
• Model: IR 28X32X17
• Distributor: BRAMMER
• Distributor Article Number: 03310166

Application

This inner ring is commonly used in various industrial applications, including automotive transmissions, gearboxes, pumps, and other machinery requiring compact and high-load bearing arrangements.

Country of Origin

This product is manufactured by IKO, a company based in Japan.

CO2 Impact

Choosing this surplus component prevents the emission of approximately 0.05 kg of CO2 compared to manufacturing a new one. This saving is equivalent to charging a smartphone 6 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

For this precision inner ring, a shaft tolerance of k5 or j5 is typically recommended to achieve the correct interference fit. Always consult the IKO engineering catalog for application-specific details.

The inner ring itself does not require lubrication, but it is a critical component of the overall bearing assembly which does. The lubrication (oil or grease) is determined by the needle roller bearing it is paired with and the application's speed, load, and temperature.

Yes, the IR series inner rings are designed to be used with shell-type needle roller bearings and machined needle roller bearings when the shaft cannot be used as a raceway. Ensure the inner ring width is appropriate for the outer bearing assembly.
