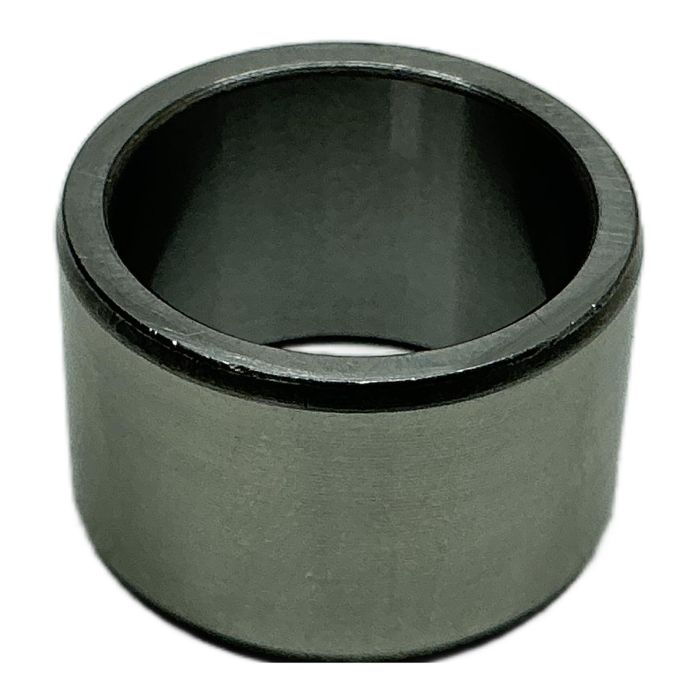

IKO Inner Ring IR 20X25X16 for Needle Roller Bearings

Description

The IKO IR 20X25X16 is a high-quality inner ring designed for use with needle roller bearings. It provides a hardened and precision-ground raceway surface for applications where the shaft cannot be used as a raceway. This component is essential for achieving maximum bearing performance, rigidity, and service life.

Specifications

• Manufacturer: IKO
• Type: IR 20X25X16
• Also Known As: LRT202516
• Inner Diameter (d): 20 mm
• Outer Diameter (F): 25 mm
• Width (B): 16 mm
• Material: High-carbon chromium bearing steel

Label Info

• Brand: IKO
• MPN: IR 20X25X16
• Distributor: Brammer

Application

This inner ring is widely used in various industrial applications, including automotive transmissions, two-cycle engines, gear pumps, and other machinery requiring compact and high-load capacity bearing arrangements.

Country of Origin

Manufactured by IKO in Japan.

CO2 Impact

By purchasing this pre-owned component, you contribute to a circular economy and help avoid 0.04 kg of CO2 emissions associated with new production.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

For optimal performance and a proper interference fit, the recommended shaft tolerance is typically h5 or j5, depending on the load conditions and application. Always consult the IKO engineering catalog for specific recommendations.

Yes, this IKO inner ring is manufactured to standard ISO dimensions and can be used with needle roller bearings from other manufacturers (like INA, SKF, etc.) that require a 20x25x16 mm inner ring. However, for best results, it is recommended to pair it with an IKO needle roller bearing.

The inner ring itself is typically supplied with a corrosion-preventive oil. The complete bearing assembly (inner ring, cage, and rollers) must be lubricated according to the application's requirements, using an appropriate grease or oil before or during operation.
