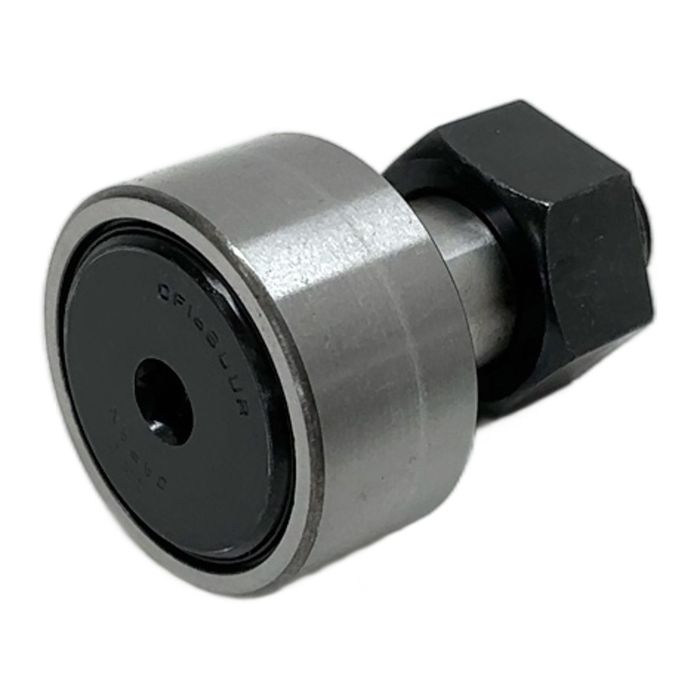

IKO CF16RBUUR Heavy-Duty Cam Follower

Description

The IKO CF16RBUUR is a precision-engineered cam follower designed for high performance in a wide range of industrial applications. It features a stud for easy mounting and a robust outer ring that functions as a roller. This model includes double seals to prevent contamination and retain grease, making it a durable choice for machinery operating in challenging conditions. The crowned outer ring helps to reduce edge loading and can accommodate minor misalignment, extending the bearing's service life.

Specifications

• Manufacturer: IKO
• Model: CF16RBUUR
• Outer Diameter (D): 35 mm
• Stud Diameter (d1): 16 mm
• Roller Width (B): 18 mm
• Overall Length (B1): 40 mm
• Thread: M16 x 1.5
• Sealing: Double seals (UUR designation)
• Outer Ring Profile: Crowned (R designation)

Label Info

• On Product: IKO CF16RBUUR JAPAN
• On Box: IKO KR 35 PP NOKROL (Distributor Part No.)

Application

Ideal for use in machine tools, industrial robots, electronic parts machinery, and general automation equipment where precise linear motion guidance is required.

Country of Origin

Made in Japan.

CO2 Impact

Opting for this component helps save approximately 0.3 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Both are IKO cam followers with identical key dimensions (35mm OD, 16mm stud). The CF...RBUUR series is a heavy-duty type, while KR is a standard series. For many applications, they are interchangeable. This part is the CF16RBUUR as physically marked.

The 'R' indicates a crowned outer ring, which helps to reduce edge stress and accommodate slight misalignment. The 'UUR' signifies that the bearing is fitted with double seals on both sides to protect against contaminants and retain lubricant, making it suitable for demanding environments.

The IKO CF16RBUUR comes pre-greased with lithium-soap-based grease. It has a lubrication hole in the stud head for re-lubrication. It's recommended to use a similar type of grease and follow the machinery manufacturer's maintenance schedule for re-greasing intervals.
