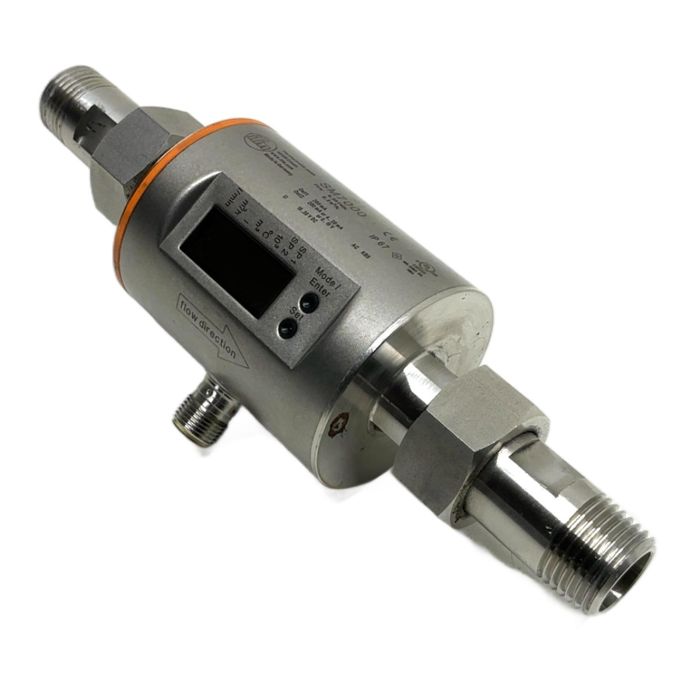

ifm SM7000 Magnetic-Inductive Flow Meter

Description

The ifm SM7000 is a high-performance magnetic-inductive flow meter designed for the precise measurement of conductive liquids in industrial applications. Its compact and robust stainless steel construction ensures durability, while the integrated display provides immediate local feedback on flow rates. With flexible outputs and an IP67 rating, this sensor is suitable for a wide range of process control and monitoring tasks.

Specifications

• Manufacturer: ifm
• Type: SM7000
• Operating Voltage: 19...30 V DC
• Outputs: 2 (Switching and Analogue 4...20 mA / 0...15 V)
• Measuring Range: 0 to 50 l/min
• Maximum Pressure: 5 MPa / 725 psi
• Process Connection: G 1/2 Thread
• IP Rating: IP67

Label Info

• Model: SM7000
• Flow: 0...50 l/min
• Pmax: 5 MPa / 725 psi
• Temp: -10 to 60 deg C
• Supply: 19...30 V DC
• Out1: 200 mA
• Out2: 200 mA or 4...20 mA or 0...15 V

Application

This flow meter is ideal for monitoring cooling circuits, managing process and waste water, and controlling dosing applications in various industries, including machine building and water management.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this ifm SM7000 flow meter saves approximately 24.6 kg of CO2. This saving is comparable to the emissions from driving a car for 123 kilometers. Choosing refurbished components makes a tangible environmental difference.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What types of liquids can the SM7000 measure?

The SM7000 is designed to measure conductive liquids with a minimum conductivity of 20 microS/cm. It is not suitable for oils or demineralised water.

How do I configure the outputs?

Configuration is performed using the two pushbuttons ('Mode/Enter' and 'Set') on the front of the device. The menu allows you to set the output functions, measuring range scaling, and switching points.

What are the materials of the wetted parts?

The parts in contact with the medium are typically made of high-grade stainless steel (1.4404 / 316L), PEEK for the measuring pipe, and FKM for the seals, ensuring broad chemical compatibility.
