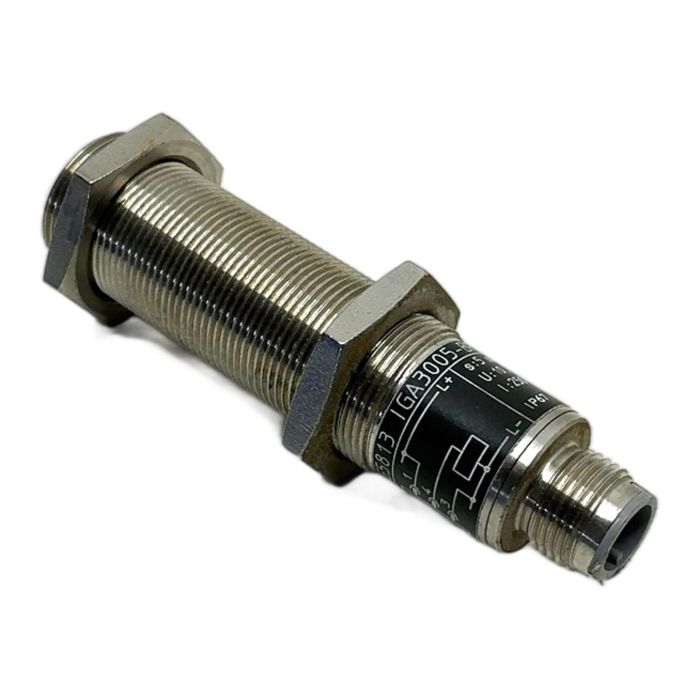

ifm IGA3005-BPKG/V4A/US Inductive Sensor

Description

The ifm IGA3005-BPKG/V4A/US is a high-quality inductive proximity sensor engineered for precision and durability in demanding industrial automation environments. With its robust M30 stainless steel (V4A) housing, it offers excellent resistance to corrosion and mechanical stress. This sensor provides reliable non-contact detection of metallic objects up to a distance of 5 mm. It features a standard M12 connector for straightforward and secure integration into your control systems.

Specifications

• Manufacturer: ifm
• Type Number: IGA3005-BPKG/V4A/US
• Alternate Article Number: IG5813
• Sensing Range: 5 mm
• Mounting: Flush mountable
• Housing: Threaded type, M30 x 1.5
• Housing Material: Stainless steel (V4A / 316L)
• Operating Voltage: 10 to 36 V DC
• Switching Output: PNP, Normally Open (NO)
• Current Rating: 250 mA
• Connection: M12 connector
• IP Rating: IP67

Label Info

• Model: IGA3005-BPKG/V4A/US
• Art. No.: IG5813
• Voltage: 10...36V DC
• Max Current: 250 mA
• Protection: SCP (Short Circuit Protection)

Application

This sensor is ideal for position detection, presence monitoring, and counting applications in various industries, including manufacturing, packaging, automotive, and material handling. The V4A housing makes it particularly suitable for use in environments with aggressive media, such as the food and beverage industry.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned sensor saves approximately 6.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the IGA3005-BPKG and its successor, the IGB3005-BPKG?

The successor model, IGB3005-BPKG, generally offers improved electronic characteristics, such as enhanced EMC protection and potentially a wider temperature range, while maintaining the same fundamental form factor and sensing capabilities.

Yes, the '/V4A/US' suffix indicates the housing is made of V4A (316L) stainless steel, which is highly resistant to corrosion and cleaning agents, making it well-suited for many applications in the food and beverage industry.

The 'f' stands for 'flush' (or 'buendig' in German), indicating that the sensor can be mounted flush in metal without affecting its sensing performance. This is a crucial detail for installation planning.
