ifm Inductive Proximity Sensor

Description

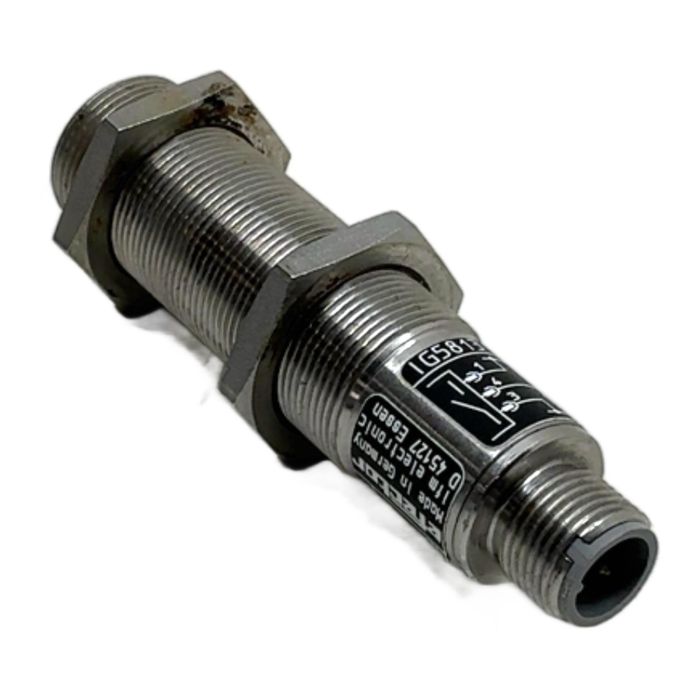

The ifm IG5813 (IGA3005-BPKG/V4A/US) is a high-performance inductive proximity sensor designed for reliable detection of metal objects in industrial settings. Its M30 threaded body is constructed from high-grade V4A stainless steel, offering excellent resistance to corrosion and aggressive media. This makes it particularly suitable for use in the food and beverage industry, chemical plants, and other demanding environments. The sensor provides a 5 mm flush-mountable sensing range and features a flexible PNP output that can be programmed as either normally open (NO) or normally closed (NC).

Specifications

• Manufacturer: ifm electronic
• Article Number: IG5813
• Full Type: IGA3005-BPKG/V4A/US
• Sensing Range: 5 mm
• Mounting: Flush mountable
• Output Type: PNP (NO/NC programmable)
• Operating Voltage: 10 to 36 V DC
• Max Current Load: 250 mA
• Housing: M30 x 1.5, Threaded
• Material: Stainless steel (1.4404 / 316L)
• Connection: M12 connector, 4-pin, gold-plated contacts
• Protection Rating: IP67

Application

Ideal for position sensing, part detection, and counting applications on conveyor systems, assembly lines, and packaging machinery, especially where high hygiene standards or chemical resistance is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished component, you are actively contributing to the circular economy and have helped avoid approximately 6.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

This code specifies the sensor's features: 'B' for flush mounting, 'P' for PNP output, 'K' for M12 connector, 'G' for gold-plated contacts, '/V4A' for high-grade stainless steel (1.4404/316L) housing, and '/US' for the specific US market version.

This sensor model is programmable, meaning its output function can be set to either Normally Open (NO) or Normally Closed (NC) depending on how it is wired, providing flexibility for different logic requirements in your control system.

The ifm IG5813 has a maximum switching frequency of 250 Hz, making it suitable for applications with moderate-speed moving targets.
