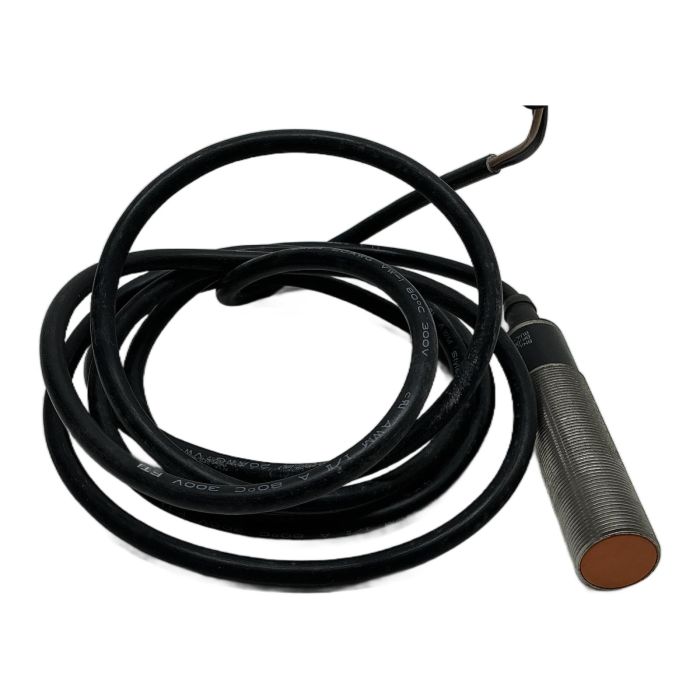

ifm Inductive Proximity Sensor IG5397

Description

The ifm IG5397 is a high-performance inductive sensor designed for non-contact detection of metallic objects in industrial environments. Part of the IGA series, it features a robust M12 threaded housing, making it easy to install in a wide range of applications. Its reliability and precise switching make it an excellent choice for automation tasks requiring accurate position sensing.

Specifications

• Manufacturer: ifm electronic
• Order Number: IG5397
• Type Designation: IGA3005-BPKG
• Sensing Range: 5 mm
• Mounting: Flush mountable
• Operating Voltage: 10 to 36V DC
• Electrical Design: DC PNP
• Output Function: Normally Open (NO)
• Switching Frequency: 800 Hz
• Housing: M12 x 1 threaded, brass white bronze coated
• Protection Rating: IP67

Label Info

• S_n: 5mm
• U_b: 10..36V DC
• I_e: 250mA
• Protection: SCP (Short Circuit Protection)

Application

This sensor is commonly used in factory automation, packaging machinery, conveyor systems, and assembly lines for tasks such as presence detection, positioning, and counting of metal parts.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this refurbished component, you are avoiding approximately 4.0 kg of CO2 emissions. This saving is equivalent to the carbon captured by planting a new tree sapling and letting it grow for several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The IG5397 has a DC PNP (Positive-Negative-Positive) output with a normally open (NO) function. This means the output switches to high when a metal object is detected within its sensing range.

Yes, this sensor is designed for flush mounting. This allows it to be embedded in metal brackets or machine parts without its sensing field being affected by the surrounding material.

The sensor has an IP67 rating. The '6' indicates it is completely dust-tight, and the '7' signifies it is protected against the effects of temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for use in harsh industrial environments with exposure to dust and liquids.
