Inductive sensor: Cable-Length: 1,90 mtrs, With combined AC/DC output stage, Wide voltage range, Two-wire technology, Wide temperature range, Robust metal housing for use in harsh industrial environments, ccc, ce, ukca, cul, Product features, Output function, make contact, Switching distance [mm], 5, Housing, cylindrical thread, Dimensions [mm], M18 x 1 / L = 80, Electrical properties, Supply voltage [V], 20...250 AC/DC, Protection class, II, Reverse polarity protection, no, Exits, Output function, make contact, Max. voltage drop switching output DC [V], 6, Max. voltage drop switching output AC [V], 6.5, Minimum load current [mA], 5, Max. quiescent current [mA], 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC), Continuous current load of switching output AC [mA], 250; (350 (...50 °C)), Continuous current load of switching output DC [mA], 100, Short-term current load of the switching output [mA], 2200; (20ms / 0.5Hz), Switching frequency AC [Hz], 25, Switching frequency DC [Hz], 50, Short-circuit proof, no, Protected against overload, no, Range, Switching distance [mm], 5, Actual switching distance (Sr) [mm], 5 ± 10%, Working distance [mm], 0...4.05, Accuracy/deviations, Correction factor, steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2, Hysteresis [% of Sr], 1...15, Switch point drift [% of Sr], -10...10, Environmental variables, Ambient temperature [°C], -25...80, Protection class, IP67, Admissions/testing, EMC, EN 61000-4-2 ESD, 4 kV CD / 8 kV AD, EN 61000-4-3 HF edited, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF cable related, 3 Q, EN 55011, class B, MTTF [years], 609, UL Approval, Ta, 0...40 °C, Enclosure type, Type 1, industrial power supplies, Hazardous voltage, File number UL

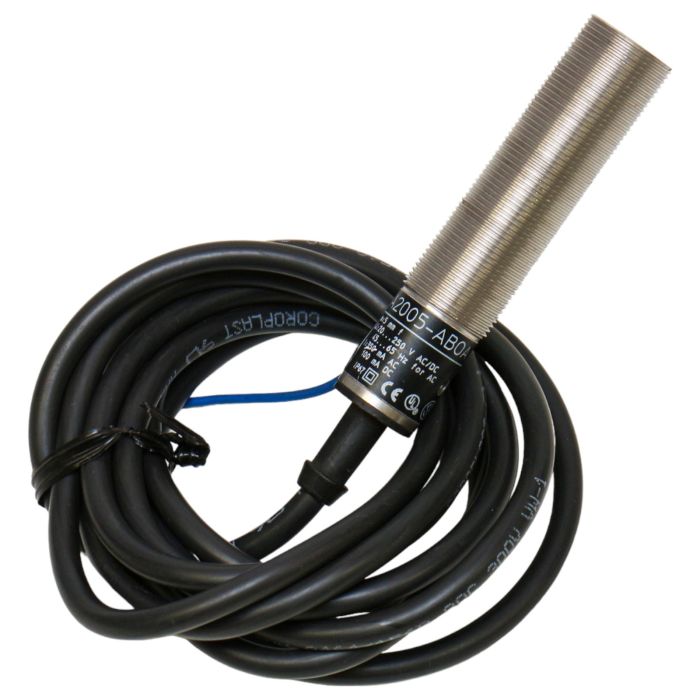

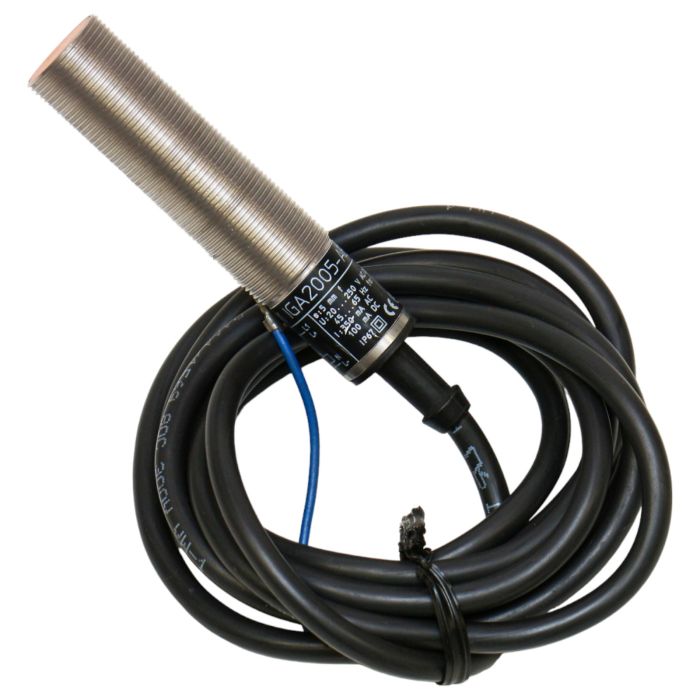

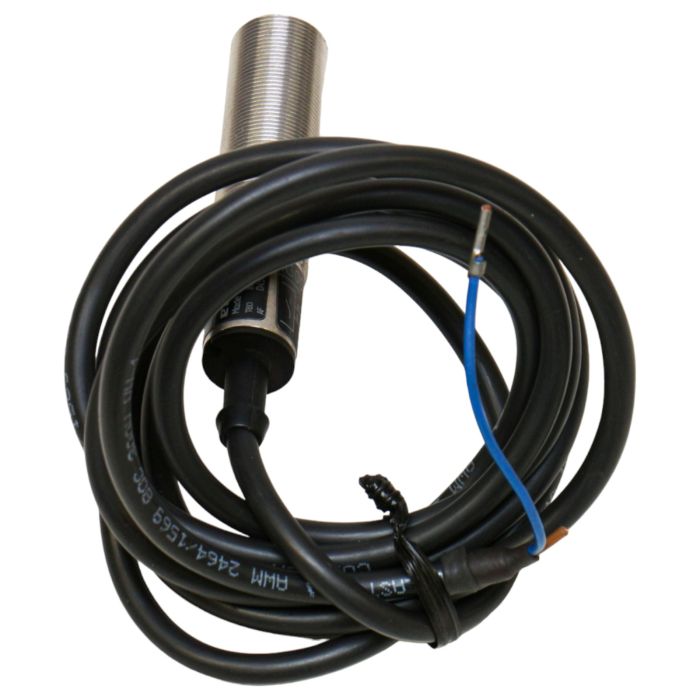

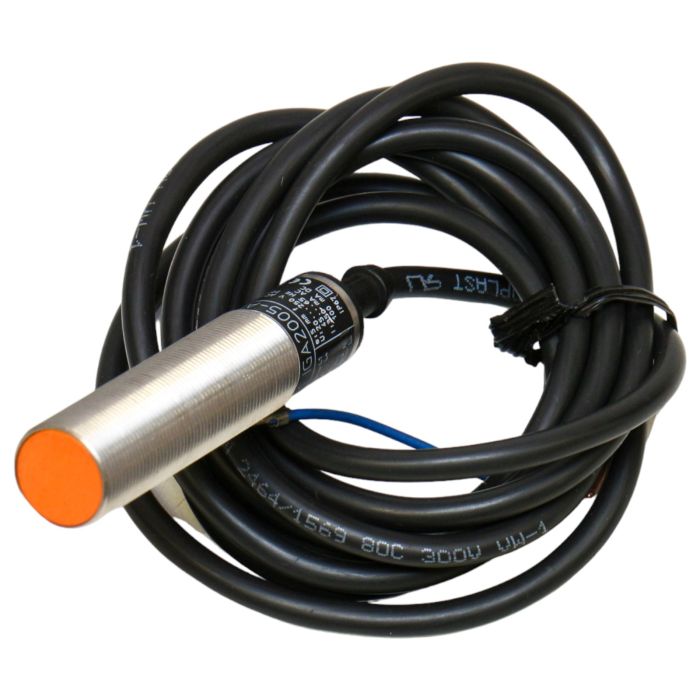

• Inductive sensor
• Cable-Length: 1.90 mtrs
• With combined AC/DC output stage
• Wide voltage range
• Two-wire technology
• Robust metal housing for use in harsh industrial environments
• ccc, ce, ukca, cul
• Product features
• Output function, make contact
• Switching distance [mm]: 5
• Housing: cylindrical thread
• Dimensions [mm]: M18 x 1 / L = 80
• Electrical properties
• Supply voltage [V]: 20...250 AC/DC
• Protection class: II
• Reverse polarity protection: no
• Exits, Output function, make contact
• Max. voltage drop switching output DC [V]: 6
• Max. voltage drop switching output AC [V]: 6.5
• Minimum load current [mA]: 5
• Max. quiescent current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
• Continuous current load of switching output AC [mA]: 250; (350 (...50 °C))
• Continuous current load of switching output DC [mA]: 100
• Short-term current load of the switching output [mA]: 2200; (20ms / 0.5Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 50
• Short-circuit proof: no
• Protected against overload: no
• Range, Switching distance [mm]: 5
• Actual switching distance (Sr) [mm]: 5 ± 10%
• Working distance [mm]: 0...4.05
• Accuracy/deviations
• Correction factor, steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10
• Environmental variables
• Ambient temperature [°C]: -25...80
• Protection class: IP67
• Admissions/testing
• EMC, EN 61000-4-2 ESD, 4 kV CD / 8 kV AD, EN 61000-4-3 HF edited, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF cable related, 3 Q, EN 55011, class B
• MTTF [years]: 609
• UL Approval, Ta, 0...40 °C
• Enclosure type: Type 1, industrial power supplies
• Hazardous voltage, File number UL

IFM IGA2005-AB0A is an advanced industrial flow meter designed for precise measurement. This item is commonly used in industries such as manufacturing, chemical processing, and water treatment. Purchase this high-quality flow meter at PLC2Day for reliable and accurate flow measurement in your industrial applications.
