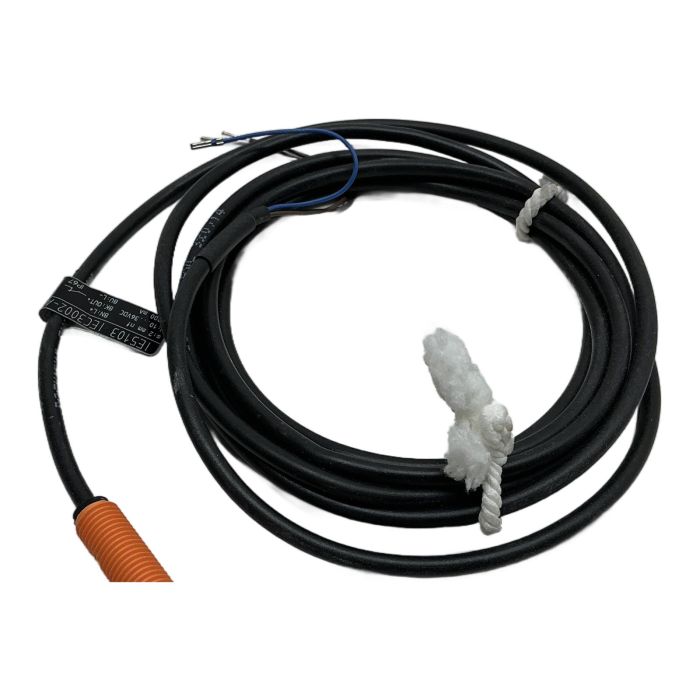

ifm Inductive Proximity Sensor IE5103

Description

The ifm IE5103 is an inductive sensor designed for reliable and precise detection of metallic objects in industrial automation systems. Part of the robust efector series, this sensor features a non-flush mountable M8 threaded body and provides a 2 mm sensing distance. It operates on a wide voltage range of 10 to 36V DC and provides a PNP switching output. Its IP67 rating ensures dependable performance even in demanding environments with dust and moisture. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: ifm
• Model: IE5103
• Type: IEC3002-APKG
• Sensing Range: 2 mm
• Mounting: Non-flush mountable
• Operating Voltage: 10...36 V DC
• Switching Output: PNP, Normally Open (NO)
• Max Current Load: 200 mA
• Housing: Threaded type, M8 x 1
• Connection: 2 meter PVC cable
• Protection Class: IP67

Label Info

• ifm electronic, efector
• IE5103 IEC3002-AP
• s: 2 mm nf
• U: 10...36VDC
• I: 200 mA

Application

This sensor is ideal for applications such as presence detection, positioning, counting, and speed monitoring in packaging machinery, assembly lines, and material handling systems.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this pre-owned sensor saves approximately 4.0 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is a discontinued model but is available from our stock. The direct modern replacement suggested by the manufacturer is the ifm IE5338.

FAQ

Non-flush mountable means the sensing face of the sensor must protrude from the surrounding metal mounting surface. This design creates a larger magnetic field, allowing for a longer sensing range compared to a flush-mountable equivalent. Mounting it flush would interfere with the field and cause unreliable operation.

You can perform a simple bench test. Connect the brown wire (BN) to the positive (+) terminal and the blue wire (BU) to the negative (-) terminal of a 10-36VDC power supply. Then, connect a multimeter in voltage measurement mode between the black wire (BK) and the negative terminal. When a metal object enters the 2mm sensing range, the multimeter should read the supply voltage. When the object is removed, it should read close to 0V.

The standard PVC (Polyvinyl chloride) cable is suitable for general-purpose automation applications with moderate movement and limited exposure to oils. For applications involving high-flex cycles (e.g., on a robot arm) or constant exposure to aggressive coolants and oils, a sensor with a PUR (Polyurethane) cable would be a more durable choice. For this model, ensure the cable is protected from excessive abrasion and harsh chemicals.
