ifm DI5020 Speed Monitor for Pulse Evaluation

Description

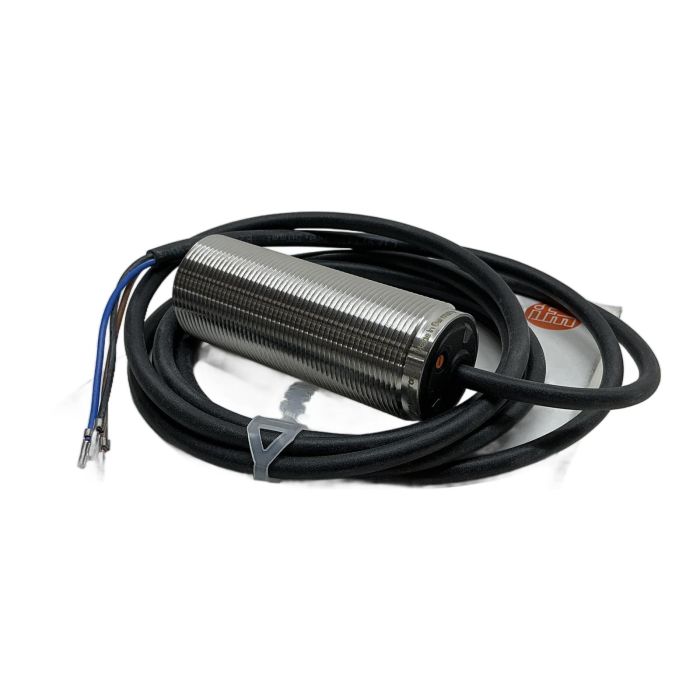

The ifm DI5020 is a high-performance inductive speed monitor designed for detecting rotational and linear movement on machinery such as conveyors, fans, and pumps. It provides reliable pulse detection within a range of 5 to 3600 impulses per minute. Housed in a durable M30 stainless steel body, this sensor is built to withstand tough industrial conditions, featuring an IP65/67 protection rating. Its PNP output makes it compatible with a wide range of PLCs and control systems.

Specifications

• Manufacturer: ifm
• Model: DI5020
• Order Code: DIA3010-ZPKG
• Operating Voltage: 10...36 V DC
• Setting Range: 5...3600 Impulses / min
• Sensing Range: 10 mm (non-flush mountable)
• Output Function: PNP, Normally Open (NO)
• Switching Frequency: 1000 Hz
• Housing: M30 x 1.5 Threaded
• Materials: Stainless steel (1.4301 / 304)
• Connection: 2 m PVC cable
• Protection Rating: IP65 / IP67

Label Info

• ifm electronic gmbh, 45128 Essen, Germany
• EAN: 4021179303286

Application

Ideal for monitoring underspeed, overspeed, and standstill conditions in applications such as conveyor systems, mixers, fans, and drive shafts. The sensor detects metallic targets (e.g., gear teeth, bolt heads) to generate a pulse signal for external evaluation units.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused ifm speed monitor, you help avoid the emission of approximately 10.0 kg of CO2. This saving is achieved by eliminating the need for new production, which includes raw material extraction, manufacturing, and transportation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DI5020 has a nominal sensing range of 10 mm. It is designed for non-flush mounting, meaning it requires a metal-free area around the sensing face for optimal performance.

This sensor has a DC PNP (Positive-Negative-Positive) normally open (NO) output. It should be wired according to the diagram: Brown (BN) to positive (+), Blue (BU) to negative (-), and Black (BK) for the signal output.

The DI5020 is a speed monitor for pulse evaluation. It provides pulses corresponding to the detected speed and must be connected to an external logic unit, such as a PLC or a dedicated ifm evaluation unit, to interpret these pulses and trigger actions based on set speed thresholds.
