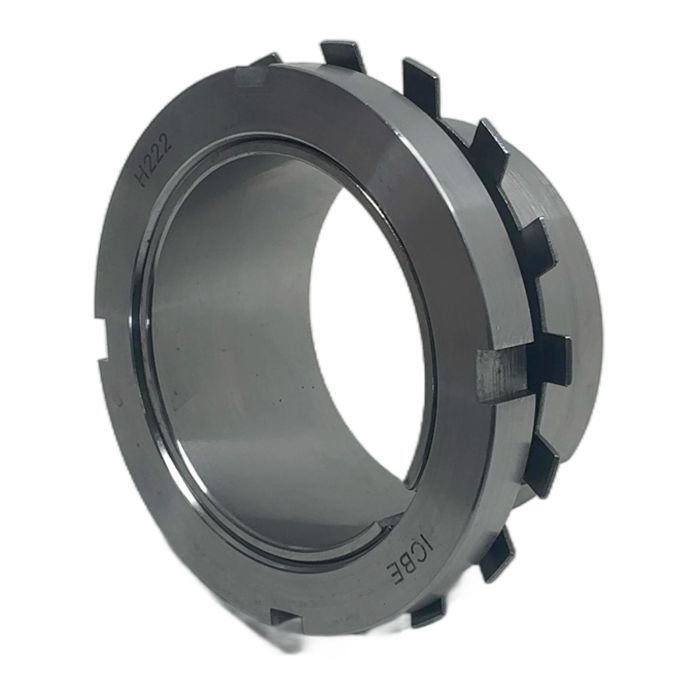

ICBE H222 Adapter Sleeve for 100mm Shafts

Description

This ICBE H222 is a high-quality adapter sleeve used for mounting bearings with a tapered bore onto cylindrical shafts. It simplifies the mounting process and ensures a secure, concentric fit, which is crucial for the optimal performance and longevity of the bearing assembly. The sleeve is designed for a 100mm shaft diameter and is a standard component in many industrial applications.

Specifications

• Manufacturer: ICBE
• Type: H222
• Product Type: Adapter Sleeve
• Shaft Diameter (d1): 100 mm
• Material: Steel
• Compatible with lock nut KM22 and locking washer MB22 (not included)

Label Info

• Brand: ICBE
• Model: H222

Application

Used in a wide range of machinery including agricultural equipment, conveyors, fans, and industrial gearboxes where bearings need to be securely mounted on smooth or stepped shafts.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 4.2 kg of CO2 emissions. This is comparable to the emissions from driving a car for 21 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary function of an adapter sleeve like the H222?

An adapter sleeve is used to locate a bearing with a tapered bore onto a cylindrical shaft. It allows for the use of standard commercial shafts, compensates for larger shaft tolerances, and facilitates easy mounting and dismounting without the need for special shaft machining.

The H222 sleeve is designed for use with bearings with a corresponding tapered bore, such as self-aligning ball bearings (e.g., 1222 K), spherical roller bearings (e.g., 22222 K, 23222 K), and CARB toroidal roller bearings.

Mounting involves sliding the sleeve onto the shaft, positioning the bearing on the sleeve's taper, and then driving the bearing up the taper by tightening the lock nut (e.g., KM22) until the required reduction in radial internal clearance is achieved. This ensures the correct interference fit.
