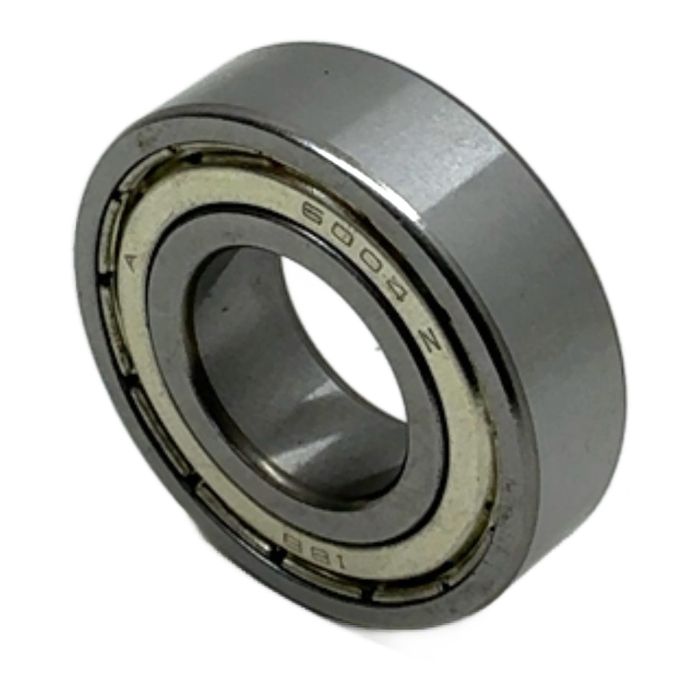

IBB 6004 Z Deep Groove Ball Bearing

Description

The IBB 6004 Z is a high-quality single-row deep groove ball bearing designed for versatility and reliability. With standard dimensions of 20x42x12mm, it is suitable for a wide range of industrial applications. The 'Z' designation indicates a pressed metal shield on one side, which protects the bearing from dust and debris while minimizing friction. This makes it an excellent choice for applications where one side is exposed to contaminants and the other is enclosed or requires lubrication access.

Specifications

• Manufacturer: IBB
• Type: 6004 Z
• Category: Deep Groove Ball Bearing
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 42 mm
• Width (B): 12 mm
• Sealing: Single Metal Shield (Z type)
• Cage Material: Steel
• Material: Bearing Steel

Label Info

• IBB
• 6004 Z

Application

This bearing is commonly used in electric motors, gearboxes, pumps, agricultural machinery, and various power tools where radial and moderate axial loads are present.

Country of Origin

IBB is a German brand. The specific country of manufacture for this component may vary.

CO2 Impact

By purchasing this reused bearing, you are contributing to a circular economy and helping to save 0.14 kg of CO2. This is equivalent to the energy needed to charge a smartphone approximately 17 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between a 6004 Z and a 6004 2Z (or ZZ) bearing?
A 6004 Z bearing has a metal shield on only one side, while a 6004 2Z (or ZZ) has a metal shield on both sides. The single-shield version is often used when the other side is protected within an assembly or requires direct lubrication access.

What are the typical limiting speeds for a 6004 Z bearing?
Limiting speeds depend on factors like lubrication, load, and heat dissipation. As a general guide, a standard 6004 bearing has a reference speed of around 22,000 RPM and a limiting speed of around 15,000 RPM for grease lubrication. For oil lubrication, these speeds can be higher. Always consult the manufacturer's datasheet for precise values for your application.

Can I use this IBB bearing to replace a premium brand like SKF or FAG?
Yes, in many applications. The IBB 6004 Z is dimensionally interchangeable with any 6004 Z or 6004 ZZ bearing from other manufacturers. For critical applications involving very high speeds, extreme loads, or high precision, it is recommended to review the specific technical ratings (like dynamic load rating) and compare them with the component being replaced.
