Description / HYDAC ZW-SDR06-01-ZAB-V 6074189

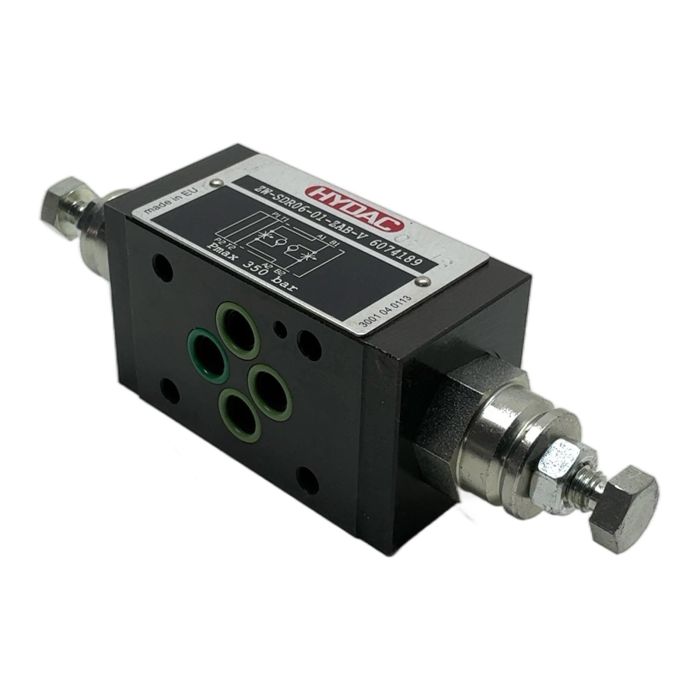

HYDAC ZW-SDR06-01-ZAB-V Double Throttle Check Valve
Description
The HYDAC ZW-SDR06-01-ZAB-V is a high-performance double throttle check valve designed for sandwich plate mounting. It conforms to the industry-standard NG6 (ISO 4401-03) interface, making it easy to install in modular hydraulic systems. This valve allows for fine adjustment of flow rates in two directions (meter-in for ports A and B), providing precise control over actuator speed. With a maximum pressure rating of 350 bar, it is suitable for a wide range of industrial hydraulic applications.
Specifications
- Manufacturer: HYDAC
- Type: Double Throttle Check Valve
- Model: ZW-SDR06-01-ZAB-V
- Mounting Standard: NG6 / CETOP 3 / ISO 4401-03
- Maximum Operating Pressure: 350 bar
- Flow Control: Meter-in on ports A and B
- Sealing Material: Viton (FKM)
Label Info
- Part Number: 6074189
- Serial Code: 3001 04 0113
Application
This valve is ideal for applications requiring precise speed control of hydraulic cylinders and motors, such as in machine tools, presses, injection molding machines, and general industrial machinery.
Country of Origin
Made in EU.
CO2 Impact
By purchasing this pre-owned component, you are contributing to the circular economy and have helped avoid approximately 2.4 kg of CO2 emissions associated with the production of a new part.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
What does 'ZAB' signify in the model number?'ZAB' indicates the valve's function: it is a throttle check valve ('Z') that provides meter-in ('A') control for both the A and B ports ('B').
Is this valve compatible with standard ISO 4401-03 / NG6 subplates?Yes, the ZW-SDR06 series is designed with the standard NG6 mounting pattern, ensuring full compatibility with any ISO 4401-03 or CETOP 3 compliant subplate or valve stack.
What hydraulic fluid is recommended for the Viton (V) seals?The Viton (FKM) seals are suitable for a wide range of fluids, including standard mineral oils (HL, HLP), synthetic fluids (HFD), and biodegradable fluids. They also offer excellent performance across a broad temperature range.
PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Last Update: Friday, March 13, 2026
More Information
| Item Number | ZW-SDR06-01-ZAB-V 6074189 |
|---|---|
| Brands | Hydac |
| HS Code | 84812010 |
| EAN | 0 |
| HS Description | Hydraulic Control Valve |
| Manufacturer | Hydac |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
