HYDAC Pilot-Operated Check Valve Subplate

Description

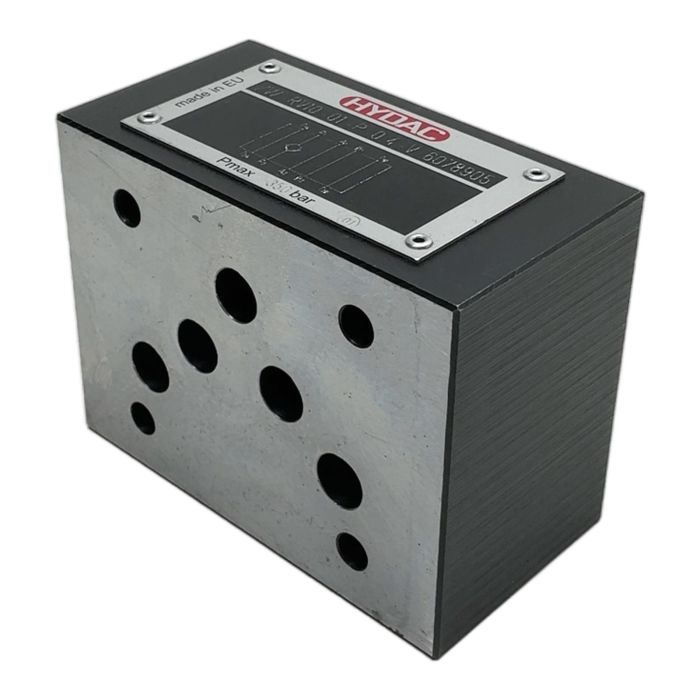

This is a HYDAC pilot-operated check valve subplate, model ZW-RV10-01-P 0.4-V, designed for integration into hydraulic systems. It provides a mounting base for directional control valves and incorporates a pilot-operated check valve function, essential for load-holding applications. Its robust construction ensures reliability under high pressure.

Specifications

• Manufacturer: HYDAC
• Model: ZW-RV10-01-P 0.4-V
• Part Number: 6078905
• Type: Pilot-Operated Check Valve Subplate
• Maximum Operating Pressure: 350 bar
• Pilot Ratio: 0.4
• Seal Material: V (Viton / FKM)
• Mounting Interface: Likely NG10 / CETOP 5

Label Info

• Pmax: 350 bar

Application

Ideal for hydraulic circuits in mobile and industrial machinery where secure load holding is required, such as in presses, lifts, and material handling equipment. It prevents actuator movement due to external forces or gravity.

Country of Origin

This component is labeled 'made in EU', manufactured by the German company HYDAC.

CO2 Impact

Reusing this part saves an estimated 10 kg of CO2 compared to manufacturing a new one. This is equivalent to charging over 1200 smartphones.

Availability

This item is a surplus part, in excellent condition and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
