Description: 909831, ENS 311P-8-0730-000-K, ENS 3000 Level Sensor, Product Info: Type, Electronic Level Switch, Model Code Description, ENS 311P-8-0730-000-K, Connection Type, Collar Fits ZBM 20 ENS 3000 Adapter, Sensor Length, 32.28 in, Connection Size, 22 mm Diameter, Output Signal, 4 Switching & 2 Analog Outputs, Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz, ≤ 5 g, Shock Resistance According to DIN EN 60068-2-29 (1 ms), ≤ 25 g, Output Permitted Load Resistance for Analog Output Signal with 1 or 2 SP Selectable, ≥ 1, ≤ 500, Output Permitted Load Resistance for Analog Output Signal with 4 SP (Only with Temperature Sensor), ≥ 1, Short-Term Maximum Tank Pressure (t<1 min), 43.5 psi, Maximum Tank Pressure, 0.5 bar, 7.25 psi, Direct Current (DC) Supply Voltage (With Analog Output), 18 to 35 V, Direct Current (DC) Supply Voltage When Applied According to UL Specifications, Limited Energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950, Maximum Total Current Consumption, 2.47 A, Maximum Current Consumption (With Inactive Switching Output and 2 Analog Outputs), 90 mA, Residual Ripple of Supply Voltage, ≤ 5 %, Fluids, Hydraulic Oils (Mineral Based), Synthetic Oils, Fluids Containing Water, Note for Fluids, Other Fluids on Request, Material of Connection, Ceramic, Display, 4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm, Weight, ~180 g, ~220 g, ~250 g, ~300 g, Temperature Sensor, With Temperature Sensor, Mechanical Connection, 22 mm Collar To Fit Cutting Ring Coupling G22L, Electrical Connection, Male M12x1, 8 Pole, Switching Outputs, 4 Switching Outputs and 2 Analog Outputs, BUn, EA, Division, ELECTRONICS, Product Group Family, LEVEL SENSORS, Product, LEVEL/FLOW SENSORS, Label Info: HYDAC ELECTRONIC, Mat.Nr: 909831, #, Elektronischer Niveauschalter, ENS 311P-8-0730-000-K, MADE IN GERMANY,

• Description: 909831, ENS 311P-8-0730-000-K, ENS 3000 Level Sensor
• Product Info: Type - Electronic Level Switch
• Model Code Description: ENS 311P-8-0730-000-K
• Connection Type: Collar Fits ZBM 20 ENS 3000 Adapter
• Sensor Length: 32.28 in
• Connection Size: 22 mm Diameter
• Output Signal: 4 Switching & 2 Analog Outputs
• Vibration Resistance: According to DIN EN 60068-2-6 at 0 to 500 Hz, ≤ 5 g
• Shock Resistance: According to DIN EN 60068-2-29 (1 ms), ≤ 25 g
• Output Permitted Load Resistance for Analog Output Signal with 1 or 2 SP Selectable: ≥ 1, ≤ 500
• Output Permitted Load Resistance for Analog Output Signal with 4 SP (Only with Temperature Sensor): ≥ 1
• Short-Term Maximum Tank Pressure (t<1 min): 43.5 psi
• Maximum Tank Pressure: 0.5 bar, 7.25 psi
• Direct Current (DC) Supply Voltage (With Analog Output): 18 to 35 V
• Direct Current (DC) Supply Voltage When Applied According to UL Specifications: Limited Energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950
• Maximum Total Current Consumption: 2.47 A
• Maximum Current Consumption (With Inactive Switching Output and 2 Analog Outputs): 90 mA
• Residual Ripple of Supply Voltage: ≤ 5 %
• Fluids: Hydraulic Oils (Mineral Based), Synthetic Oils, Fluids Containing Water
• Material of Connection: Ceramic
• Display: 4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm
• Weight: ~180 g, ~220 g, ~250 g, ~300 g
• Temperature Sensor: With Temperature Sensor
• Mechanical Connection: 22 mm Collar To Fit Cutting Ring Coupling G22L
• Electrical Connection: Male M12x1, 8 Pole
• Switching Outputs: 4 Switching Outputs and 2 Analog Outputs
• Label Info: HYDAC ELECTRONIC, Mat.Nr: 909831, #, Elektronischer Niveauschalter, ENS 311P-8-0730-000-K, MADE IN GERMANY

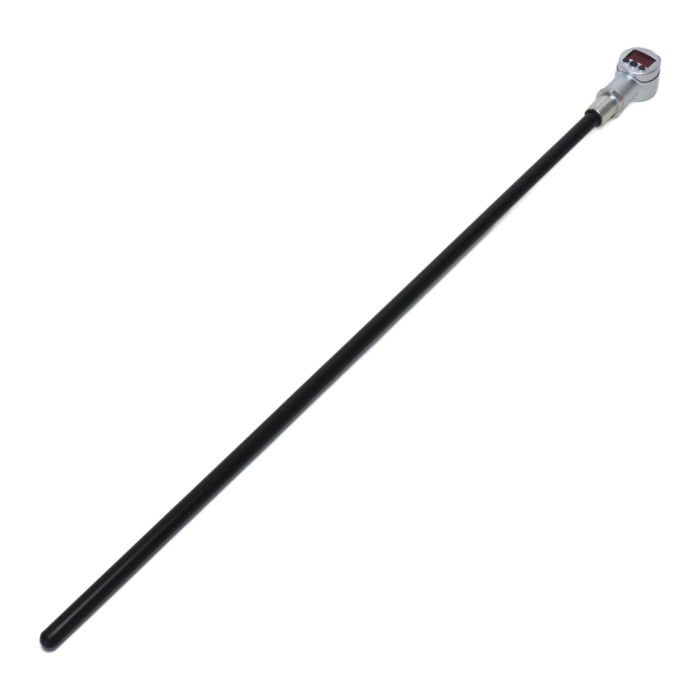

Hydac ENS 311P-8-0730-000-K

This Hydac product is suitable for a variety of industrial applications including automation, packaging, conveyors, HVAC, and more. Available for purchase at PLC2Day.
