HYDAC Hydraulic Directional Control Valve 350 bar 24VDC

Description

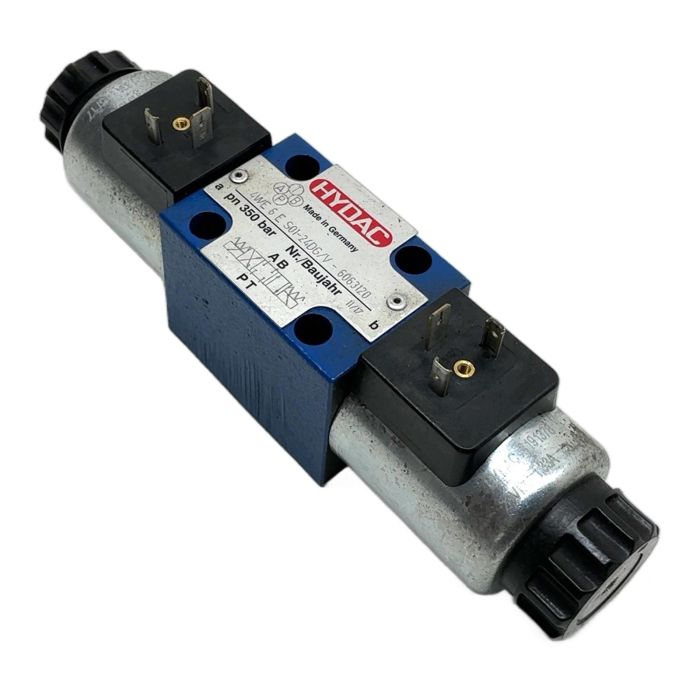

The HYDAC 4WE 6 E S01-24DG/V is a high-performance, direct-operated directional spool valve. It features solenoid actuation and conforms to the industry-standard NG6 (CETOP 3) mounting pattern. This 4/3-way valve is designed for reliability in demanding hydraulic applications, with a maximum operating pressure of 350 bar. The 'E' spool configuration provides a tandem center position, which unloads the pump to the tank when idle, improving system efficiency. This unit is equipped with two 24VDC solenoids for actuation.

Specifications

• Manufacturer: HYDAC
• Type: Solenoid-operated directional spool valve
• Size: NG6 / CETOP 3
• Mounting Standard: ISO 4401-03-02-0-05
• Actuation: Electrical (Solenoid)
• Spool Type: E (Tandem center, P to T, A & B blocked)
• Operating Pressure (max): 350 bar
• Control Voltage: 24V DC
• Solenoid Current: 1.33A

Label Info

• Model: 4WE 6 E S01-24DG/V
• Part Number: 6063120
• Date of Manufacture: November 2017
• Solenoid Coil P/N: 3191376

Application

Ideal for use in industrial hydraulics, mobile machinery, machine tools, and manufacturing systems where precise directional control of hydraulic fluid is required. The tandem center design is particularly suitable for systems with frequent idle periods.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned valve saves an estimated 26 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions of driving a car for 130 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'E' designates a tandem center spool. In the neutral, non-actuated position, this spool configuration connects the pump port (P) directly to the tank port (T), effectively unloading the pump and reducing energy consumption while the actuators are idle. The work ports (A and B) are blocked.

Yes, the solenoid coils are modular and can be replaced without opening the hydraulic system. They are typically held in place by a retaining nut, allowing for easy field replacement if a coil fails. Ensure the system is de-energized before performing any maintenance.

This valve conforms to the NG6 (CETOP 3 / D03) mounting pattern as per ISO 4401-03-02-0-05. For standard applications with class 8.8 bolts, the recommended tightening torque is typically around 5.5 to 6.0 Nm. Always consult your system's documentation for specific requirements.
