HYDAC 4/2-Way Solenoid Directional Control Valve

Description

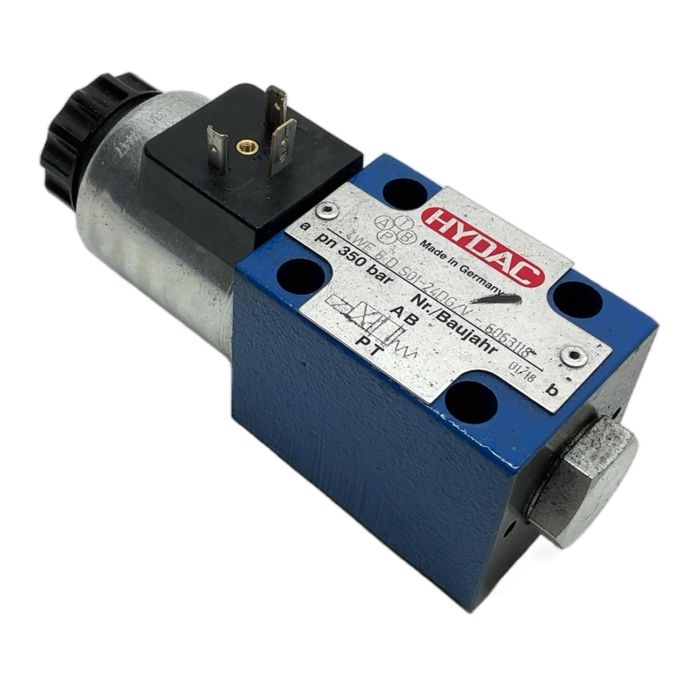

This is a HYDAC 4WE 6 D S01-24DG/V, a high-performance, direct-operated directional spool valve. It is designed to control the flow direction in hydraulic systems, conforming to the widely used NG6 (CETOP 3 / D03) mounting standard. With its 24V DC solenoid, it provides reliable switching at pressures up to 350 bar. This valve is an essential component for precise control in industrial machinery, manufacturing lines, and mobile hydraulic applications.

Specifications

• Manufacturer: HYDAC
• Type: 4WE 6 D S01-24DG/V
• Part Number: 6063118
• Valve Type: 4/2-Way Directional Spool Valve
• Interface: NG6 / CETOP 3 / D03
• Actuation: 24V DC Solenoid
• Maximum Operating Pressure (pn): 350 bar
• Seals: /V (FKM/Viton)

Label Info

• HYDAC 4WE 6 D S01-24DG/V
• Part Nr.: 6063118
• Solenoid Coil: 24VDC 1.33A (HYDAC P/N: 3101372)

Application

Ideal for use in various hydraulic circuits requiring reliable start, stop, and directional control of a fluid stream. Common applications include machine tools, presses, injection molding machines, and automation equipment.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned valve, you are contributing to a circular economy and helping to save approximately 15 kg of CO2 emissions compared to buying a new one. This saving is equivalent to driving a car for 75 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'NG6' designation signify?

Answer: NG6 (from the German 'Nenngroesse 6') is a standard size for hydraulic valves, also known as CETOP 3 or D03 by the NFPA. This standardization ensures that valves from different manufacturers with the same designation have identical mounting patterns and port locations, allowing for easy interchangeability.

Question?
Can the 24V DC solenoid coil be replaced separately?

Answer: Yes, the solenoid coil is a modular component and can be replaced independently of the valve body. The coil for this valve typically has the HYDAC part number 3101372. This allows for cost-effective maintenance if only the coil fails.

Question?
What type of hydraulic fluid is compatible with the '/V' (Viton/FKM) seals?

Answer: The '/V' indicates FKM (Viton) seals, which offer excellent compatibility with a wide range of fluids, including mineral oils (HL, HLP), synthetic fluids (HFD), and have a high temperature resistance, making them suitable for demanding industrial environments.
