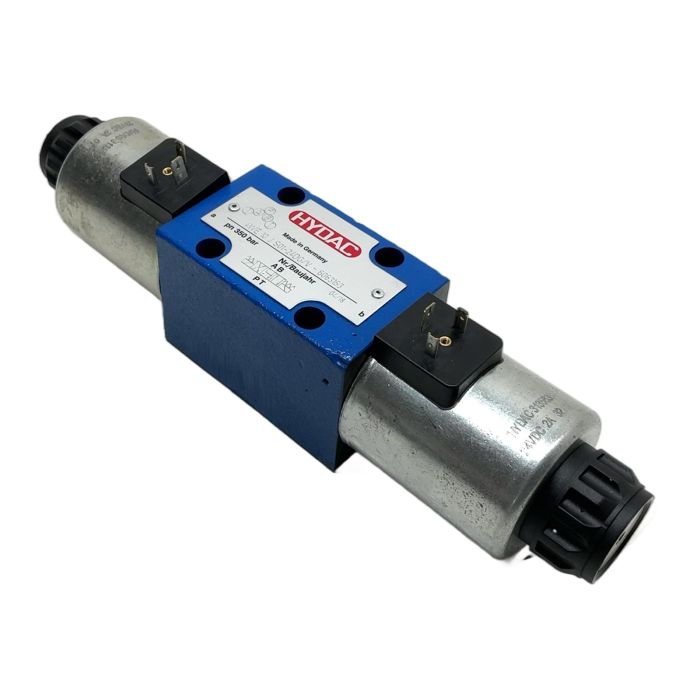

HYDAC 4WE 10 J S01-24DG/V Directional Spool Valve

Description

This is a direct solenoid operated directional spool valve from HYDAC, model 4WE 10 J S01-24DG/V. It is a 4/3-way valve with a closed-center spool configuration, designed for high-pressure hydraulic applications up to 350 bar. Its NG10 (CETOP 5) mounting interface ensures compatibility and easy installation in standard hydraulic systems. The 24V DC solenoids provide reliable and fast switching for precise control of hydraulic actuators.

Specifications

• Manufacturer: HYDAC
• Type: 4WE 10 J S01-24DG/V
• Part Number: 6063163
• Valve Type: 4/3-Way Directional Spool Valve
• Actuation: Dual Solenoid, spring-centered
• Nominal Size: NG10 / CETOP 5
• Maximum Operating Pressure: 350 bar
• Spool Type: J (Closed Center, A, B, P, T blocked)
• Control Voltage: 24V DC
• Seal Material: Viton (FKM)

Label Info

• Model: 4WE 10 J S01-24DG/V - 6063163
• Pressure (pn): 350 bar
• Date of Manufacture: 04/18 (April 2018)

Application

This valve is suitable for a wide range of industrial applications, including machine tools, presses, manufacturing lines, and mobile machinery, where reliable directional control of hydraulic fluid is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned valve, you are avoiding approximately 13 kg of CO2 emissions associated with the manufacturing of a new unit. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the significance of the 'J' spool in the model number 4WE 10 J S01-24DG/V?

The 'J' denotes the spool type. In this case, it is a closed-center spool. When the valve is in its neutral, unactuated position, all ports (P, T, A, and B) are blocked, preventing any fluid flow and holding the actuator in position.

These solenoids use a standard DIN 43650-A (ISO 4400) connector. It's a common, rectangular 3-pin connector widely used in industrial hydraulics for its robustness and ease of connection.

Yes. The '/V' at the end of the part number indicates that the valve is fitted with Viton (FKM) seals. These seals offer excellent compatibility with a wide range of fluids, including synthetic esters and water glycols, and are suitable for higher temperature applications compared to standard NBR seals.
