Description / HYDAC 4WE-10-E-S01-24DG/V 6063157

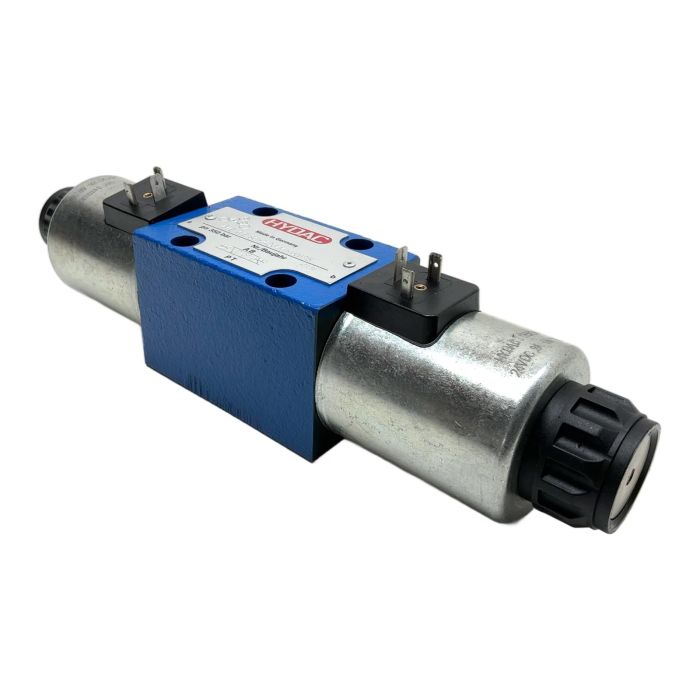

HYDAC 4WE 10 E S01-24DG/V Directional Control Valve
Description
This is a HYDAC 4WE 10 E S01-24DG/V, a high-performance 4/3-way directional spool valve. It is designed for direct solenoid operation and conforms to the NG10 (CETOP 5) mounting standard. With a maximum pressure rating of 350 bar and robust construction, this valve is engineered for reliability and precision in demanding hydraulic circuits. The 24V DC coils ensure compatibility with standard industrial control systems. This unit is in excellent condition and ready for deployment.
Specifications
- Manufacturer: HYDAC
- Type: 4WE 10 E S01-24DG/V
- Part Number: 6063157
- Valve Type: 4/3-Way Directional Spool Valve
- Nominal Size: NG10 / CETOP 5
- Mounting Interface: ISO 4401-05-05-0-94
- Maximum Operating Pressure (pn): 350 bar
- Actuation: Dual Solenoid, 24V DC
- Spool Center Position: Closed Center (all ports blocked)
- Seals: Viton (FKM)
Label Info
- Coil P/N: 3135638
- Coil Spec: 24VDC 2A
- Date of Manufacture: March 2018 (03/18)
Application
This valve is ideal for controlling the direction of fluid flow in a variety of industrial and mobile hydraulic systems, including machine tools, presses, injection molding machines, and material handling equipment.
Country of Origin
Made in Germany
CO2 Impact
By purchasing this reused HYDAC valve, you are contributing to a circular economy and preventing approximately 10 kg of CO2 emissions compared to buying a new one. This is equivalent to the emissions from driving a car for 50 kilometers.
Availability
This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.
FAQ
Question? What is the significance of the "NG10" size designation?Answer
NG10 refers to the nominal size of the valve's mounting interface according to ISO 4401-05 and CETOP RP121H standards. This ensures interchangeability with other NG10 (or CETOP 5) valves from different manufacturers, simplifying system design and maintenance. Question? How do the manual overrides on the solenoids work?Answer
The black knobs on each end of the valve are manual overrides. They allow you to manually shift the valve spool in case of a power failure or for testing purposes during commissioning, without needing to energize the 24V DC coils. Question? What are the benefits of Viton (V) seals in this application?Answer
Viton (FKM) seals, indicated by the "/V" in the type number, offer excellent resistance to high temperatures, petroleum-based hydraulic fluids, and many chemicals. This makes the valve suitable for demanding industrial environments with potentially aggressive operating conditions.PLC2DAY is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
Last Update: Friday, March 13, 2026
More Information
| Item Number | 4WE-10-E-S01-24DG/V 6063157 |
|---|---|
| Brands | Hydac |
| HS Code | 84812010 |
| EAN | 0 |
| HS Description | Solenoid Operated Hydraulic Valve |
| Manufacturer | Hydac |
| Product Condition | Used |
| Packing Condition | Neutral Packing Packing |
