HYDAC 4WE 10 Series Hydraulic Directional Valve

Description

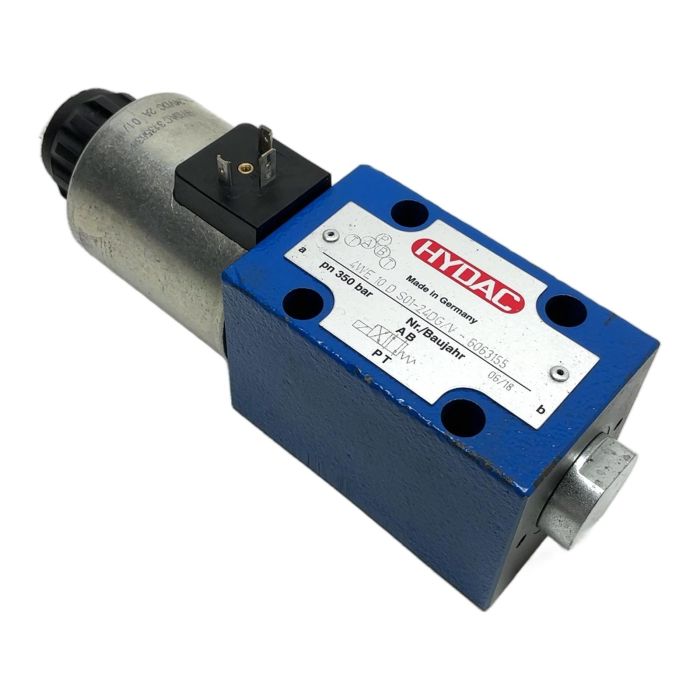

This is a HYDAC 4WE 10 D S01-24DG/V, a high-performance, solenoid-operated directional spool valve. Designed for reliability in industrial hydraulic systems, it controls the start, stop, and direction of fluid flow. Its robust construction ensures a long service life even under demanding conditions with pressures up to 350 bar. This model features a single 24V DC solenoid and spring return for default positioning.

Specifications

• Manufacturer: HYDAC
• Type: 4WE 10 D S01-24DG/V
• Part Number: 6063155
• Valve Size: NG10 / CETOP 5
• Control Type: Solenoid-operated
• Function: 4/2-way directional control valve
• Solenoid Voltage: 24V DC
• Maximum Operating Pressure: 350 bar
• Seals: Viton (V)

Label Info

• Valve P/N: 6063155
• Date of Manufacture: 06/18
• Coil P/N: 3135636
• Coil Spec: 24VDC 2A

Application

This valve is ideal for use in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where precise hydraulic control is required.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned item, you are helping to prevent the emission of approximately 13 kg of CO2, which would have been generated during the production of a new unit. This saving is comparable to driving a car for 65 km.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

NG10 (from the German "Nenngroesse 10") refers to the nominal size of the valve's mounting interface, conforming to standards like CETOP 5 and ISO 4401-05. This ensures interchangeability with other NG10-sized valves and subplates from various manufacturers.

Yes, the solenoid coil on this HYDAC valve is a modular component. It can be easily unscrewed and replaced without having to remove the entire valve from the hydraulic system, which significantly simplifies maintenance.

The '/V' in the type number indicates that the valve is fitted with Viton (FKM) seals. These seals are suitable for use with mineral oils (HL, HLP), synthetic fluids (HFD), and have excellent temperature and chemical resistance compared to standard NBR seals.
