Description: Part Number 1263042 (0950 R 020 0N), HYDAC Filter Element - Type R for Return Line Filters, Product Info: Model Code, 0950 R 020 ON, Absolute Filter Rating, 20 µm, Media Type, ON=Optimicron low-press., Seal Material, Nitrile Rubber (NBR), Cap 1 Type, O-Ring Cap, Cap 2 Type, Bypass Cap, Collapse Rating, 20 bar, Stat-Free, No, Type, Hydraulic Filter Element, Size, 0950, Filter Rating, 20 µm, Style, Cartridge, Efficiency, 99.9 %, Material, Microglass, Configuration, One Open Cap, One Bypass Cap, Cap 1 Material, Plastic, Cap 2 Material, Plastic, Support Tube Material, Steel, Outer Sleeve, Yes, Flow Direction, Outside - In, Beta Rating, ßx(c) ≥ 1000, K-Factor, 0.017 psi/gpm, Operating Temperature [Min], -30 ºC, -22 ºF, Operating Temperature [Max], 100 ºC, 212 ºF, Bypass Pressure, 43 psi, 3 bar, BUn, EA, Division, HYDRAULIC AND LUBE FILTERS, Product Group Family, ELEMENTS-HYDAC PROPRIETARY, Product, HYDAC ELEMENTS, label Info: Filterelement/Elément filtrant/Filter element, HYDAC, 1020514, 1263042, 0950 R 020 0N, U/DA-A, Made in Germany

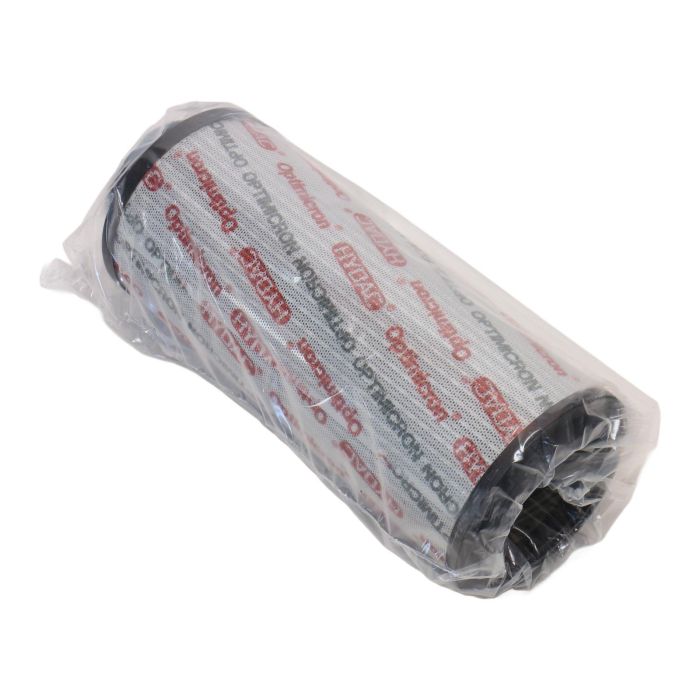

• Description: Part Number 1263042 (0950 R 020 0N), HYDAC Filter Element - Type R for Return Line Filters
• Product Info:
  • Model Code: 0950 R 020 ON
  • Absolute Filter Rating: 20 µm
  • Media Type: ON=Optimicron low-press.
  • Seal Material: Nitrile Rubber (NBR)
  • Cap 1 Type: O-Ring Cap
  • Cap 2 Type: Bypass Cap
  • Collapse Rating: 20 bar
  • Stat-Free: No
  • Type: Hydraulic Filter Element
  • Size: 0950
  • Filter Rating: 20 µm
  • Style: Cartridge
  • Efficiency: 99.9 %
  • Material: Microglass
  • Configuration: One Open Cap, One Bypass Cap
  • Cap 1 Material: Plastic
  • Cap 2 Material: Plastic
  • Support Tube Material: Steel
  • Outer Sleeve: Yes
  • Flow Direction: Outside - In
  • Beta Rating: ßx(c) ≥ 1000
  • K-Factor: 0.017 psi/gpm
  • Operating Temperature [Min]: -30 ºC, -22 ºF
  • Operating Temperature [Max]: 100 ºC, 212 ºF
  • Bypass Pressure: 43 psi, 3 bar
  • BUn: EA
  • Division: HYDRAULIC AND LUBE FILTERS
  • Product Group Family: ELEMENTS-HYDAC PROPRIETARY
  • Product: HYDAC ELEMENTS
• Label Info: Filterelement/Elément filtrant/Filter element, HYDAC, 1020514, 1263042, 0950 R 020 0N, U/DA-A, Made in Germany

Hydac 1263042 0950 R 020 ON
