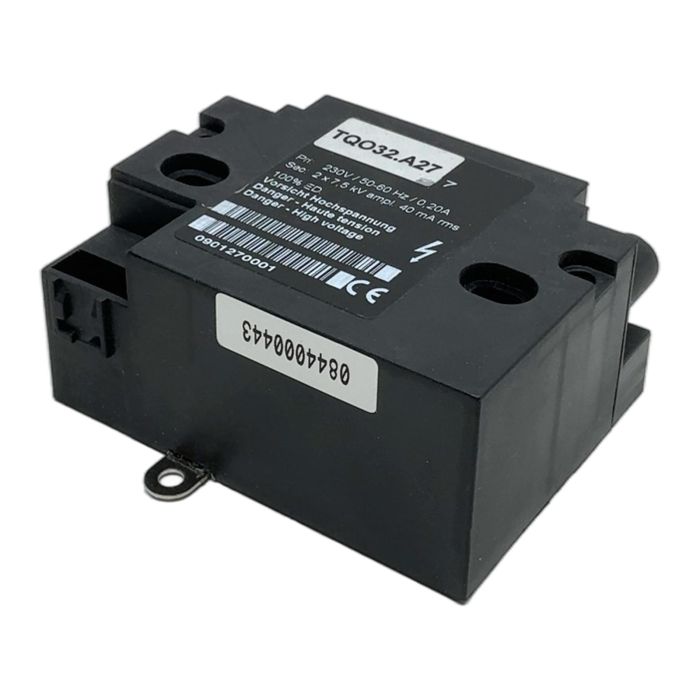

Honeywell TQO32.A27 High-Voltage Ignition Transformer

Description

The Honeywell TQO32.A27 is a high-performance ignition transformer designed for industrial oil and gas burners. Formerly under the Satronic brand, this component is known for its reliability and durability. It provides a stable and powerful high-voltage spark for consistent ignition. With a 100% duty cycle, it is rated for continuous operation in demanding industrial environments.

Specifications

• Manufacturer: Honeywell (Satronic)
• Model: TQO32.A27
• Part Number: 0901270001
• Primary Voltage: 230V, 50/60 Hz
• Primary Current: 0.20 A
• Secondary Output: 2 x 7.5 kV amplified
• Secondary Current: 40 mA rms
• Duty Cycle (ED): 100%

Label Info

• Pri: 230V / 50-60 Hz / 0.20A
• Sec: 2 x 7.5 kV ampl. 40 mA rms
• 100% ED

Application

This ignition transformer is suitable for a wide range of applications in industrial heating, including commercial boilers, furnaces, and process burners requiring reliable high-voltage ignition for gas or oil fuels.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

Choosing this used or surplus unit over a new one prevents the emission of approximately 20 kg of CO2, which is comparable to the savings from charging a smartphone over 2400 times.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does '100% ED' mean for this transformer?

'100% ED' stands for 100% Einschaltdauer, or 100% duty cycle in English. This means the transformer is designed and rated for continuous operation without needing a cool-down period, making it suitable for applications that require a constant or frequent ignition spark.

Is this transformer suitable for both gas and oil burners?

Yes, the Honeywell TQO32.A27 is a versatile ignition transformer designed for use with both gas and oil burner systems. Its high-voltage output of 2 x 7.5 kV is effective for igniting either fuel type reliably.

Can I replace a transformer with a lower secondary current (e.g., 20mA) with this 40mA model?

While physically possible, it is not recommended without consulting the burner manufacturer's specifications. The ignition current is a critical parameter for stable ignition and flame safety. Using a transformer with double the current (40mA vs 20mA) could affect electrode wear and ignition performance. Always match the replacement part's specifications to the original.
