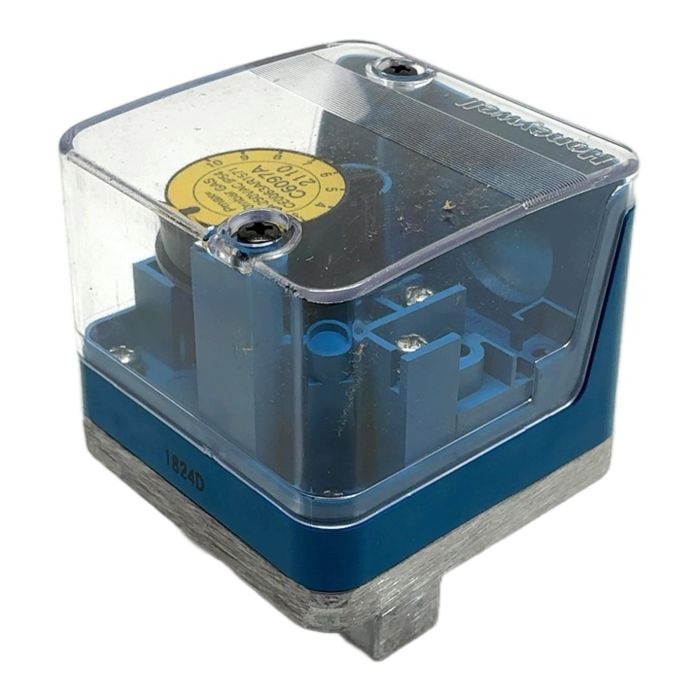

Honeywell Gas Pressure Switch 1-10 mbar C6097A2110

Description

The Honeywell C6097A2110 is a stand-alone gas pressure switch designed for monitoring gas and air pressure in industrial combustion applications. It serves as a crucial safety and interlocking component in burner management systems. This switch is adjustable within a range of 1.0 to 10 mbar and provides reliable performance with a clear cover for easy setpoint verification.

Specifications

• Manufacturer: Honeywell
• Model: C6097A2110
• Product Type: Gas Pressure Switch
• Operating Pressure Range: 1.0 to 10 mbar
• Maximum Operating Pressure: 300 mbar
• Electrical Connection: Screw terminals
• Switching Capacity: 1A (resistive), 0.6A (inductive) at 250V AC
• Pressure Connections: Rp 1/4 inch internal thread

Label Info

• Pmax: 500mbar (Note: Model specific max. operating pressure is 300 mbar per manual)
• I(N)=1A-250VAC
• I(L)=0.6A-250VAC

Application

This pressure switch is ideal for use in commercial and industrial gas burners, gas appliances, and HVAC systems where monitoring of gas or air pressure is required for safe operation. It is suitable for natural gas, propane, and air.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this reused component, you are helping to avoid the emission of 8.0 kg of CO2, which is comparable to the savings from driving a car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The operating pressure (1-10 mbar for this model) is the range within which you can set the switch point. The maximum pressure (300 mbar) is the highest pressure the device can withstand without being damaged. Exceeding the maximum pressure can lead to permanent failure.

This pressure switch is specifically designed and certified for use with dry gases, such as natural gas, propane (gaseous phase), and air. It should not be used with liquids, as this can damage the diaphragm and lead to inaccurate readings or failure.

The switching point is adjusted using the yellow dial located inside the transparent cover. The dial is marked with a scale in mbar. To adjust, you typically use a small flat-head screwdriver to turn the dial to your desired pressure setpoint. Always verify the switching point with a calibrated manometer after adjustment.
