Hoerbiger Origa Pneumatic Tie-Rod Cylinder

Description

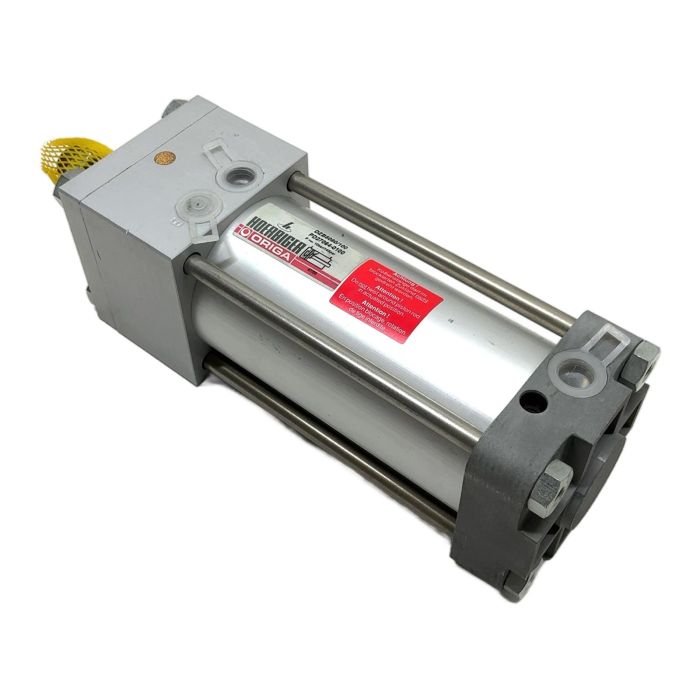

This is a DZB series pneumatic cylinder from Hoerbiger Origa, designed for reliable linear motion in various industrial applications. As a double-acting cylinder, it provides powered movement in both extend and retract strokes. This unit is classified as new old stock, offering the performance of a new component at excellent value. It is an ideal spare part or replacement for machinery utilizing ISO/VDMA standard cylinders.

Specifications

• Manufacturer: Hoerbiger Origa
• Series: DZB
• Action: Double-Acting
• Bore Diameter: 80 mm
• Stroke Length: 100 mm
• Maximum Operating Pressure: 10 bar / 145 psi
• Construction: Tie-Rod design

Label Info

• Model: DZB5080/100
• Part Number: PD27064-0100
• Date Code: 47/00 (Week 47, Year 2000)

Application

This cylinder is suitable for a wide range of automation tasks, including clamping, positioning, pressing, and material handling in manufacturing and processing industries.

Country of Origin

Manufactured in Germany.

CO2 Impact

Opting for this reused component prevents approximately 39 kg of CO2 emissions compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this cylinder compatible with modern ISO 15552 mounting accessories?

Yes, the DZB series was built according to the VDMA 24562 and ISO 6431 standards, which were predecessors to the current ISO 15552. Most mounting accessories like flanges, feet, and clevises designed for ISO 15552 cylinders of the same bore size should be compatible.

The ports are standard threaded connections. For an 80mm bore cylinder, these are typically G3/8 or G1/2 threaded ports. It is best to measure the port diameter to confirm the correct fitting size before purchase.

This specific model does not explicitly state it has a magnetic piston. To use position sensors, you would need to verify if a magnet is present in the piston, which was often an optional feature for this series.
