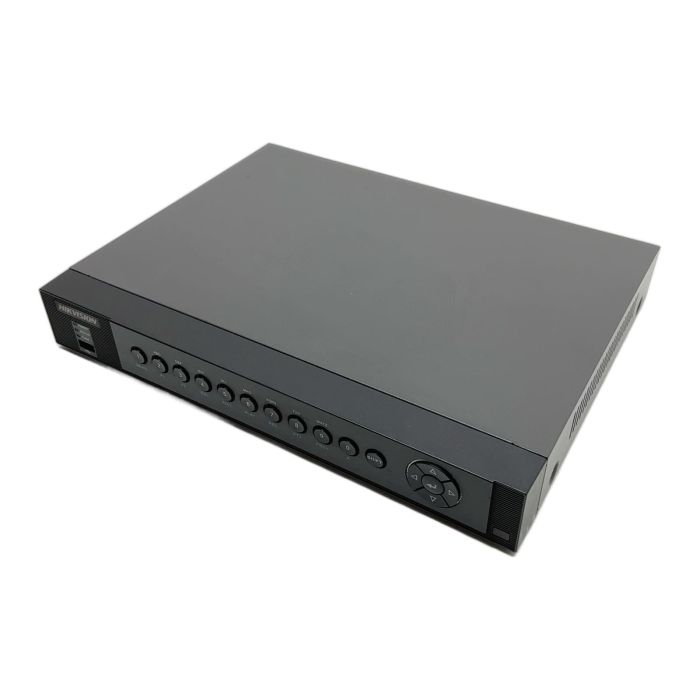

HIKVISION Digital Video Recorder 4 Channel DS-7204HQHI-SH/A(B)

Description

The HIKVISION DS-7204HQHI-SH/A(B) is a robust 4-channel Turbo HD Digital Video Recorder. It provides a reliable solution for surveillance systems, supporting HD-TVI, AHD, and traditional analog cameras. With HDMI and VGA outputs, it allows for high-definition local viewing, while its network capabilities enable remote access and monitoring. This unit is an excellent choice for upgrading or maintaining small-scale security installations.

Specifications

• Manufacturer: HIKVISION
• Model: DS-7204HQHI-SH/A(B)
• Product Type: Digital Video Recorder (DVR)
• Video Input Channels: 4
• Supported Camera Types: HD-TVI, AHD, Analog
• Video Outputs: 1x HDMI, 1x VGA
• Audio Input/Output: 1-ch RCA / 1-ch RCA
• Recording Resolution: Up to 1080p Lite
• Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
• Power Supply: 12V DC, 2A

Label Info

• Model: DS-7204HQHI-SH/A(B)
• Serial No.: 579240598
• Input: 12V DC, 2A, Max 40W

Application

This DVR is ideal for various security applications, including residential properties, small businesses, retail stores, and offices where a reliable 4-camera surveillance system is required.

Country of Origin

Made in China.

CO2 Impact

Opting for this refurbished DVR saves an estimated 60 kg of CO2 compared to manufacturing a new one. This choice supports a circular economy and reduces industrial waste.

Availability

This is an obsolete item, but it is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

This DVR model typically supports one SATA hard drive (HDD) with a capacity of up to 6TB. For optimal performance and reliability in a 24/7 surveillance environment, it is highly recommended to use a surveillance-grade HDD, such as those from the Western Digital Purple or Seagate SkyHawk series.

Yes, this DVR supports remote viewing. You can connect it to your network via its LAN port and configure it with Hikvision's iVMS-4500 mobile app or the Hik-Connect service. This allows for live viewing, playback, and receiving alerts on your iOS or Android device from anywhere with an internet connection.

The DS-7204HQHI-SH/A(B) supports real-time recording at up to 1080p Lite resolution on all channels. For standard 1080p recording, it operates at a lower frame rate. It provides both HDMI and VGA outputs with a resolution of up to 1920x1080 pixels for clear local monitoring.
