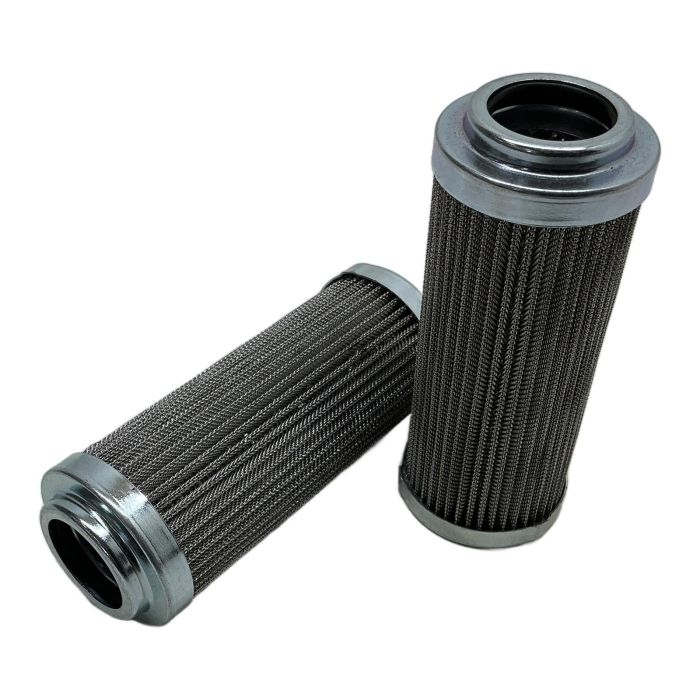

UFI Hydraulic Suction Filter Element

Description

The UFI SH 630154 is a high-quality hydraulic suction filter element designed to protect pumps and other sensitive components in hydraulic systems from coarse contamination. Its durable steel wire mesh construction offers excellent filtration efficiency and low flow resistance, making it an ideal choice for in-tank suction line applications.

Specifications

• Manufacturer: UFI
• Model: SH 630154
• Product Type: Hydraulic Suction Filter
• Filtration Media: Steel Wire Mesh
• Filtration Rating: 90 Micron (nominal)
• Construction: Steel end caps and mesh

Label Info

• Brand: UFI
• Part Number: SH 630154

Application

This filter is typically installed directly on the suction line of the pump, often submerged inside the hydraulic reservoir. It is crucial for preventing damage from larger particles that could be drawn into the pump, such as weld spatter, metal shavings, or other debris left from manufacturing or maintenance.

Country of Origin

Manufactured in Italy.

CO2 Impact

By reusing this component, you are contributing to a circular economy and helping to avoid approximately 1.0 kg of CO2 emissions associated with the production of a new one. This saving is equivalent to the energy needed to power an electric car for 5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Its main purpose is to protect the hydraulic pump from large, coarse contaminants. It acts as a 'last chance' filter on the suction side to prevent catastrophic pump failure, rather than for fine filtration of the oil.

Yes, wire mesh suction strainers are generally designed to be cleanable. They can be cleaned with a suitable solvent and compressed air. However, they should be inspected for damage (tears, holes) before being reinstalled. For critical applications, replacement is often recommended.

A 90-micron (or micrometer) rating indicates the nominal size of particles the filter is designed to capture. It is effective against larger debris but will not remove very fine silt or sludge particles from the hydraulic fluid. For finer filtration, pressure or return line filters with lower micron ratings are used.
