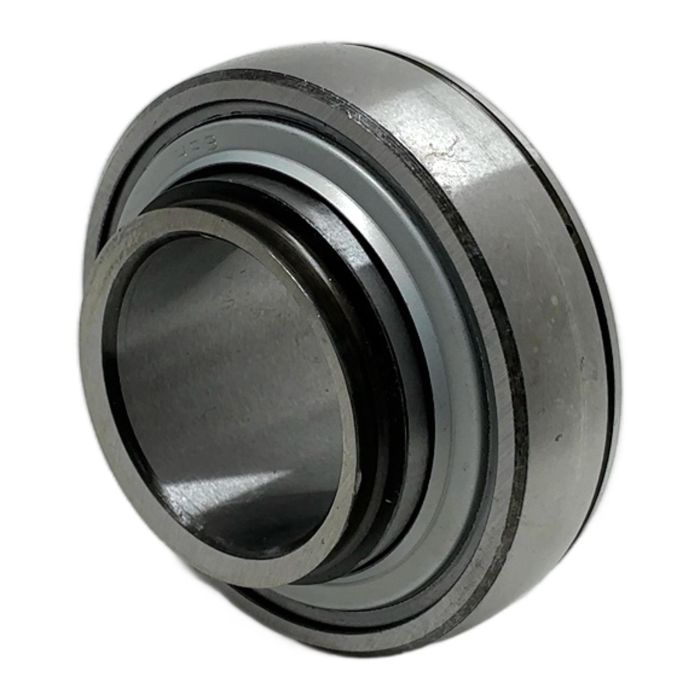

HFR Bearing Insert HC208

Description

The HFR HC208 is a high-quality insert bearing, also known as a Y-bearing. It is designed to be mounted in various types of bearing housings, offering a self-aligning capability due to its spherical outer surface. This feature compensates for initial shaft misalignments, making it ideal for applications in conveyor systems, agricultural equipment, and general industrial machinery. The bearing is secured to the shaft using two set screws, ensuring a reliable and simple installation.

Specifications

• Manufacturer: HFR
• Type: HC208
• Bore Diameter: 40 mm
• Outer Diameter: 80 mm (spherical)
• Inner Ring Width: 49.2 mm
• Locking Mechanism: Set Screw
• Material: Bearing Steel

Label Info

• The race is marked with the type number HC208 and the manufacturer HFR.

Application

Suitable for pillow block housings, flange units, and take-up units in moderate load and speed applications.

Country of Origin

China

CO2 Impact

Opting for this pre-owned bearing insert saves approximately 1.4 kg of CO2 emissions compared to a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The HC208 bearing insert with its spherical outer diameter is compatible with standard P (Pillow Block), F (Flange), and T (Take-up) series housings designed for a 208-series bearing.

The set screws should be tightened alternately to the manufacturer's recommended torque specification to ensure the inner ring is securely and squarely locked onto the shaft, preventing slippage during operation.

The HC208 is typically supplied pre-lubricated and sealed for life, making it maintenance-free under normal operating conditions. However, some variants may have a lubrication groove and hole for relubrication if required by the application's demands.
