HEIDENHAIN ROC 413 Absolute Rotary Encoder

Description

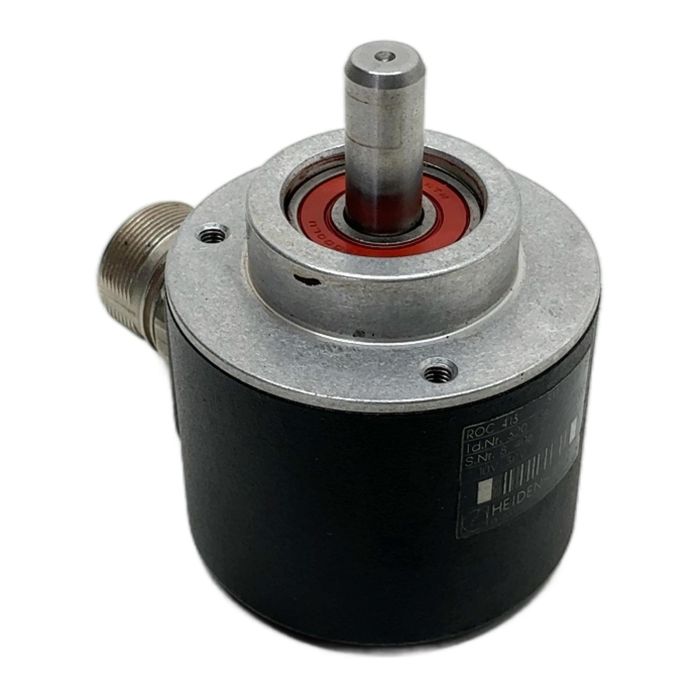

This is a HEIDENHAIN ROC 413 multiturn absolute rotary encoder, part number 320 198-02. It is engineered for high-precision position feedback in demanding industrial environments. Featuring a synchronous serial interface (SSI), this encoder delivers reliable absolute position values, making it an excellent choice for applications in machine tools, robotics, and automated systems. As an obsolete model, it is a critical spare part for maintaining existing equipment.

Specifications

• Manufacturer: HEIDENHAIN
• Type: ROC 413
• Id. Number: 320 198-02
• Positions per Revolution: 512
• Interface: SSI
• Supply Voltage: 10 V to 30 V DC
• Shaft Type: Solid Shaft

Label Info

• Model: ROC 413 512 27S17-58
• Id.Nr.: 320 198-02
• S.Nr.: 8 406 955 A
• Voltage: 10V...30V

Application

Ideal for use in CNC machinery, packaging equipment, robotics, and any automated system requiring precise absolute positioning over multiple rotations.

Country of Origin

Made in Germany.

CO2 Impact

By reusing this component, you are saving approximately 12 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This product is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This encoder uses the Synchronous Serial Interface (SSI), a digital point-to-point interface for transmitting absolute position data.

Yes, HEIDENHAIN encoders are designed for industrial use. The ROC 413 series has a robust construction that offers good resistance to shock and vibration, but always check the original machine's specifications for compatibility.

A singleturn encoder provides absolute position data within one 360-degree revolution and resets after each turn. A multiturn encoder, like this ROC 413, provides data for one revolution AND also counts the number of full revolutions, retaining its position even after power loss.
