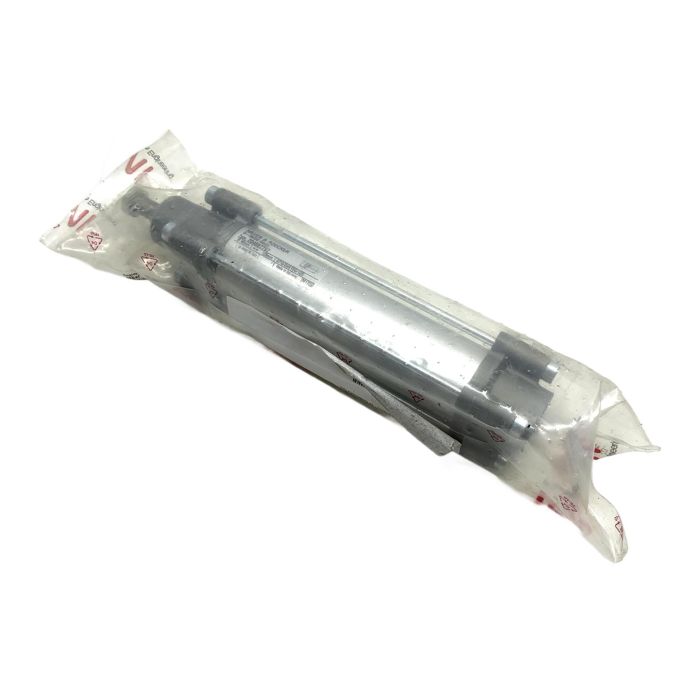

Haver & Boecker Pneumatic Cylinder 40mm Bore 125mm Stroke

Description

This is a high-quality, double-acting pneumatic cylinder from Haver & Boecker, designed for reliable linear motion in industrial automation systems. With its robust construction and precise engineering, it is an ideal component for machinery in various sectors. This unit is new old stock, in its original sealed packaging, ensuring it is in perfect working condition.

Specifications

• Manufacturer: Haver & Boecker
• Part Number: 204887797
• Model Series: SPG/06515C/125
• Type: Pneumatic Profile Cylinder
• Action: Double-acting
• Bore Diameter: 40 mm
• Stroke Length: 125 mm
• Maximum Operating Pressure: 16 bar

Label Info

• Material: 204887797
• Description: cylinder, SPG/06515C/125
• Date: 28.02.2018

Application

This pneumatic cylinder is suitable for a wide range of applications including material handling, clamping, pressing, and positioning tasks within automated manufacturing lines, packaging machinery, and custom-built equipment.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this reused component over a new one prevents the emission of approximately 13 kg of CO2, a significant saving that contributes to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this cylinder compatible with standard ISO 15552 mounting accessories?

Answer

Yes, while it is an OEM part for Haver & Boecker, the design appears to conform to the ISO 15552 standard for profile cylinders. This means standard brackets, clevises, and rod ends for a 40mm bore cylinder should be compatible.

What type of sensors can be used with this cylinder?

Answer

This cylinder features grooves along the profile body designed to accept standard T-slot or C-slot proximity sensors. These sensors detect the magnetic piston inside to provide position feedback without physical contact.

What is the recommended operating fluid and filtration for this cylinder?

Answer

This cylinder is designed for use with compressed air, filtered to at least 40 micrometers. It is typically pre-lubricated for its service life, but operation with lubricated air (using ISO VG32 oil) is also possible if consistent lubrication is maintained.
