Haver & Boecker Rodless Pneumatic Cylinder

Description

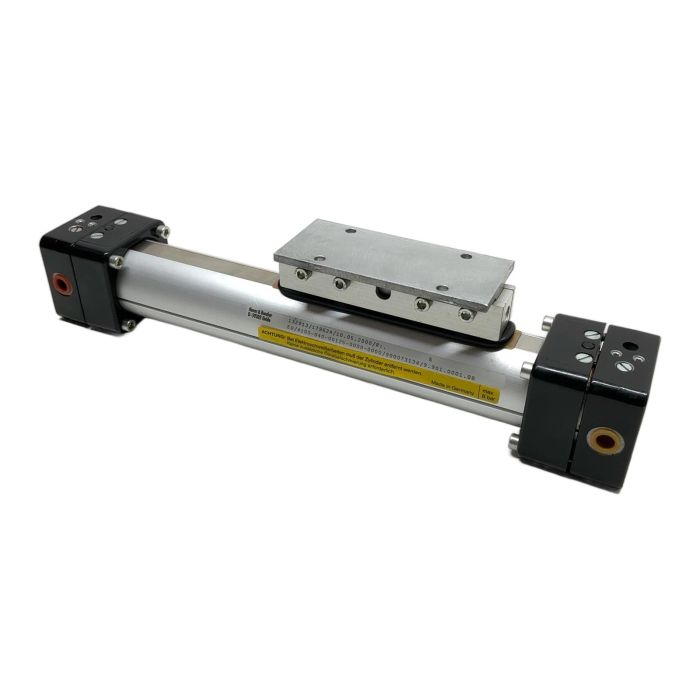

This is a used but well-maintained rodless pneumatic cylinder manufactured by Haver & Boecker in Germany. Based on the model number, it features a 40 mm bore and a 125 mm stroke, making it suitable for a variety of industrial automation applications requiring linear movement. The unit includes an integrated slide carrier for direct load mounting and guidance. Its robust construction ensures reliable performance in demanding environments.

Specifications

• Manufacturer: Haver & Boecker
• Part Number: EU/4100-040-00125
• Type: Rodless Pneumatic Cylinder with external guide
• Bore Diameter: 40 mm (estimated from part number)
• Stroke Length: 125 mm (estimated from part number)
• Maximum Operating Pressure: 8 bar
• Lubrication: Not required (pre-lubricated)

Label Info

• Full Number String: 132913/179624/10.05.2000/R: 5
• EU Number String: EU/4100-040-00125-0000-0000/900073134/9.901.0001.08

Application

Ideal for applications in packaging machinery, material handling, and custom automation systems where space is limited and external guidance is needed.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this refurbished component, you are helping to avoid approximately 25 kg of CO2 emissions compared to a new production. This is equivalent to driving a car for 125 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Based on the part number EU/4100-040-00125, this cylinder has a 40 mm bore diameter and a 125 mm stroke length.

Yes, the label states in German that no additional oil mist lubrication is required. It is designed for use with dry, filtered air.

Yes, rodless cylinders like this typically have grooves in the housing or use external brackets to mount proximity or reed sensors for position detection of the internal magnetic piston. The specific sensor type and mounting hardware would need to be verified.
