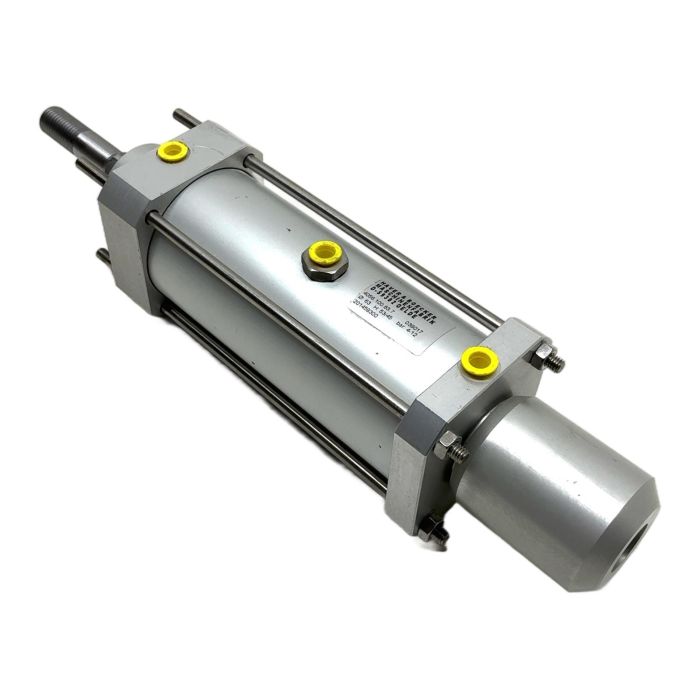

Haver & Boecker 63mm Bore Pneumatic Cylinder

Description

This is a high-quality pneumatic cylinder from Haver & Boecker Maschinenfabrik, engineered in Germany. Designed for reliability in industrial automation, this double-acting cylinder features a standard profile design, making it a versatile component for various machine-building applications. It is likely an original equipment manufacturer (OEM) part for Haver & Boecker machinery, guaranteeing precise performance.

Specifications

• Manufacturer: Haver & Boecker
• Part Number: 4056.100.83.7
• Category: Pneumatic Cylinder
• Bore Diameter: 63 mm
• Stroke (Hub): 53/45 mm
• Operating Pressure: 4 to 12 bar
• Construction: Tie-rod cylinder, ISO 15552 profile

Label Info

• 4056.100.83.7
• 039017
• Dia 63 H: 53/45 bar: 4-12
• 201459300

Application

This cylinder is ideal for linear motion tasks in automated systems, such as clamping, positioning, and material handling, particularly within the packing and processing industries where Haver & Boecker equipment is prevalent.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this surplus cylinder over a new one saves approximately 23.0 kg of CO2, which is comparable to the emissions from a 115 km car journey. Your purchase supports a more sustainable industrial sector.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This notation is specific to the manufacturer. It likely indicates a total stroke length with specific cushioning or functional zones within the stroke, or perhaps different effective strokes for extension and retraction. For precise application, it is best to measure the physical stroke or consult the machine's documentation.

Yes, its profile design with T-slots and tie-rod construction is consistent with the ISO 15552 standard. This means it should be compatible with standard mounting accessories like clevises, flanges, and feet designed for 63mm bore ISO cylinders.

The aluminum body with T-slots is designed for use with magnetic proximity sensors. You can mount C-slot or T-slot sensors directly onto the cylinder barrel to detect the piston's position, assuming the piston is fitted with a magnet, which is standard for this type of cylinder.
